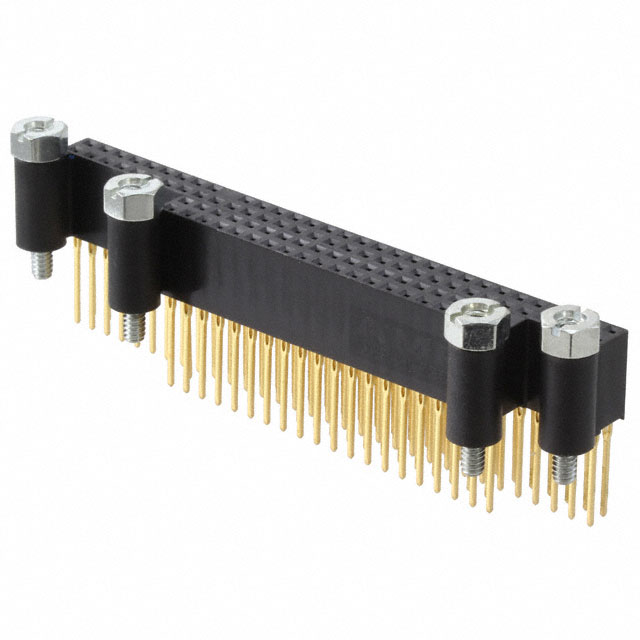

1375791-1
Or copy the link below:
- Mfr.Part #
- 1375791-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN STKTHRU PC/104 104POS PCB
- Stock
- 3,479
- In Stock ：
- 3,479
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Mating Contact Row Spacing :
- 0.1 inch
- Factory Lead Time :
- 18 Weeks
- Mixed Contacts :
- No
- RoHS Status :
- Non-RoHS Compliant
- Min Operating Temperature :
- -55°C
- Radiation Hardening :
- No
- Dielectric Withstanding Voltage :
- 500VAC V
- Mount :
- Press Fit, Through Hole
- DIN Conformance :
- No
- Flammability Rating :
- UL94 V-0
- Plating Thickness :
- 15μin
- Filter Feature :
- No
- Lead Length :
- 12.2682mm
- Number of Conductors :
- ONE
- Insulation Resistance :
- 1GOhm
- Length :
- 81.5mm
- Insertion Force-Max :
- 1.39 N
- PCB Contact Pattern :
- RECTANGULAR
- Max Operating Temperature :
- 105°C
- Contact Style :
- SQ PIN-SKT
- Contact Gender :
- FEMALE
- Polarization Key :
- ENDS
- Number of Positions :
- 104
- Reliability :
- COMMERCIAL
- Contact Resistance :
- 30mOhm
- Packaging :
- Bulk
- Width :
- 9.91mm
- Contact Plating :
- Gold
- Connector Type :
- Receptacle
- Lead Free :
- Lead Free
- Number Of PCB Rows :
- 4
- Number of Contacts :
- 102
- ELV :
- Compliant
- Orientation :
- Straight
- ECCN Code :
- EAR99
- Option :
- GENERAL PURPOSE
- Additional Feature :
- POLARIZED
- Reference Standard :
- UL, CSA
- Number of Rows :
- 4
- Color :
- Black
- Housing Material :
- Nylon
- MIL Conformance :
- No
- IEC Conformance :
- No
- Pitch :
- 2.54mm
- Keyed :
- yes
- Durability :
- 50 Cycles
- Termination :
- Press-Fit
- Contact Pattern :
- RECTANGULAR
- Pbfree Code :
- yes
- Contact Material :
- Bronze
- Published :
- 2007
- Datasheets
- 1375791-1
Receptacle Press-Fit Black 104 Positions Pitch: 2.54mm Bulk
1375791-1 Overview
The product comes in a package of Receptacle.To package the product, a Bulk case is used.Among other features are POLARIZED, to name only a few.Use it when the temperature is below 105°C.Temperatures below -55°C are required for this device to operate.It is mounted by Press Fit, Through Hole.
1375791-1 Features
1375791-1 Applications
There are a lot of TE Connectivity
1375791-1 Backplane Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
