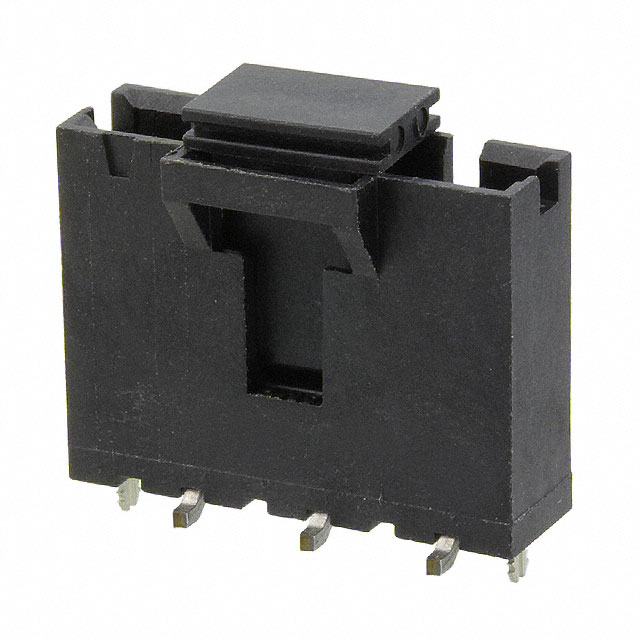

1375583-5
Or copy the link below:
- Mfr.Part #
- 1375583-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 6POS 2.54MM
- Stock
- 11,213
- In Stock ：
- 11,213
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Material Flammability Rating :
- UL94 V-0
- Color :
- Black
- Pitch :
- 2.54mm
- Flammability Rating :
- UL94 V-0
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Approval Agency :
- CSA, UL
- Contact Shape :
- Square
- Fastening Type :
- Latch Holder
- Housing Color :
- Black
- Operating Temperature :
- -65°C~105°C
- Housing Material :
- Thermoplastic
- Depth :
- 6.68mm
- Insulation Color :
- Black
- Contact Resistance :
- 15mOhm
- Style :
- Board to Board or Cable
- Length :
- 17.78mm
- Contact Material :
- Brass
- Contact Type :
- Male Pin
- PCB Mount Retention :
- With
- Insulation Resistance :
- 5GOhm
- Contact Finish - Mating :
- Gold
- Row Spacing :
- 2.54 mm
- Number of Positions :
- 6
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Published :
- 2005
- Number of Rows :
- 1
- Current Rating :
- 3A
- Termination :
- Solder
- Lead Free :
- Contains Lead
- Plating :
- Gold
- Shrouding :
- Shrouded - 4 Wall
- Max Operating Temperature :
- 105°C
- Applications :
- Automotive, General Purpose, Medical, Telecommunications
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Number of Contacts :
- 6
- Contact Length - Mating :
- 0.230 5.84mm
- Current Rating (Amps) :
- 3A
- Mount :
- Surface Mount
- Mounting Type :
- Surface Mount
- Connector Type :
- Header
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Min Operating Temperature :
- -65°C
- Contact Finish - Post :
- Tin-Lead
- Pitch - Mating :
- 0.100 2.54mm
- Contact Plating :
- Gold
- Orientation :
- Vertical
- PCB Mounting Orientation :
- Vertical
- ELV :
- Non-Compliant
- Insulation Height :
- 0.535 13.60mm
- Packaging :
- Tape and Reel (TR)
- Insulation Material :
- Thermoplastic
- Radiation Hardening :
- No
- RoHS Status :
- Non-RoHS Compliant
- Factory Lead Time :
- 22 Weeks
- Number of Positions Loaded :
- All
- Series :
- AMPMODU MTE
- Feature :
- Board Lock, Keying Slot
- Datasheets
- 1375583-5
AMPMODU MTE Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount Gold Thermoplastic 6-Position Board to Board or Cable 0.535 13.60mm Height
1375583-5 Overview
Currently, it is packaged in Header.The mounting type of the device is Surface Mount.A Tape & Reel (TR) case is used to package the product.A product of the AMPMODU MTE Series, it belongs to the range of products of that series.A temperature below 105°C is best for using it.The device must run at -65°C degrees.This device may be used for the purpose of Automotive, General Purpose, Medical, Telecommunications.A number of features make the Board Lock, Keying Slot feature more powerful.Surface Mount represents the mounting point for the part.-65°C~105°C Operating Temperature is the default operating temperature for the device.
1375583-5 Features
AMPMODU MTE series
1375583-5 Applications
There are a lot of TE Connectivity AMP Connectors
1375583-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
