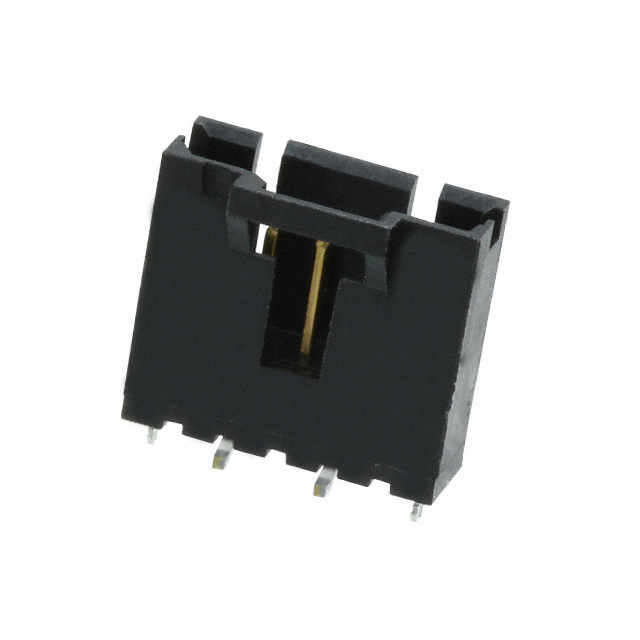

1375583-4
Or copy the link below:
- Mfr.Part #
- 1375583-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 5POS 2.54MM
- Stock
- 21,260
- In Stock ：
- 21,260
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Factory Lead Time :
- 22 Weeks
- Current Rating :
- 3A
- Max Operating Temperature :
- 105°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- AMPMODU MTE
- Contact Gender :
- Male
- ELV :
- Non-Compliant
- Termination :
- Solder
- Plating :
- Gold
- PCB Mounting Orientation :
- Vertical
- Row Spacing :
- 2.54 mm
- Insulation Material :
- Thermoplastic
- Contact Type :
- Male Pin
- Style :
- Board to Board or Cable
- Feature :
- Board Lock, Keying Slot
- Orientation :
- Vertical
- Pitch :
- 2.54mm
- Contact Material :
- Brass
- Packaging :
- Tape and Reel (TR)
- Color :
- Black
- Contact Shape :
- Square
- Flammability Rating :
- UL94 V-0
- Lead Free :
- Contains Lead
- Approval Agency :
- CSA
- RoHS Status :
- Non-RoHS Compliant
- Wire/Cable Type :
- Discrete
- Insulation Color :
- Black
- Number of Positions Loaded :
- All
- PCB Thickness :
- 1.57mm
- Contact Finish - Post :
- Tin-Lead
- Mount :
- Surface Mount
- Insulation Height :
- 0.535 13.60mm
- Insulation Resistance :
- 5GOhm
- Number of Positions :
- 5
- Contact Length - Mating :
- 0.230 5.84mm
- Pitch - Mating :
- 0.100 2.54mm
- Published :
- 2010
- Contact Current Rating :
- 3A
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Current Rating (Amps) :
- 3A
- Contact Finish - Mating :
- Gold
- Mounting Type :
- Surface Mount
- Housing Color :
- Black
- Fastening Type :
- Latch Holder
- Housing Material :
- Thermoplastic
- Contact Plating :
- Gold
- PCB Mount Retention :
- With
- Number of Rows :
- 1
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Connector Type :
- Header
- Material Flammability Rating :
- UL94 V-0
- Operating Supply Voltage :
- 250V
- Number of Contacts :
- 5
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Applications :
- Automotive, General Purpose, Medical, Telecommunications
- Min Operating Temperature :
- -65°C
- Operating Temperature :
- -65°C~105°C
- Radiation Hardening :
- No
- Datasheets
- 1375583-4
AMPMODU MTE Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount Gold Thermoplastic 5-Position Board to Board or Cable 0.535 13.60mm Height
1375583-4 Overview
The product is packaged in Header.This device is mounted in the Surface Mount position.It has been determined that a Tape & Reel (TR) case is necessary to package the product.There is a product in the AMPMODU MTE Series.When the temperature is below 105°C, it is best to use it.A minimum operating temperature of -65°C is required for this device.The device could be used for the following application: Automotive, General Purpose, Medical, Telecommunications.There are a number of advantages to its Board Lock, Keying Slot feature.Part Surface Mount is mounted to the part.250V is the operating supply voltage for this memory.As a result, the device runs at -65°C~105°C Operating Temperature.
1375583-4 Features
AMPMODU MTE series
1375583-4 Applications
There are a lot of TE Connectivity AMP Connectors
1375583-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
