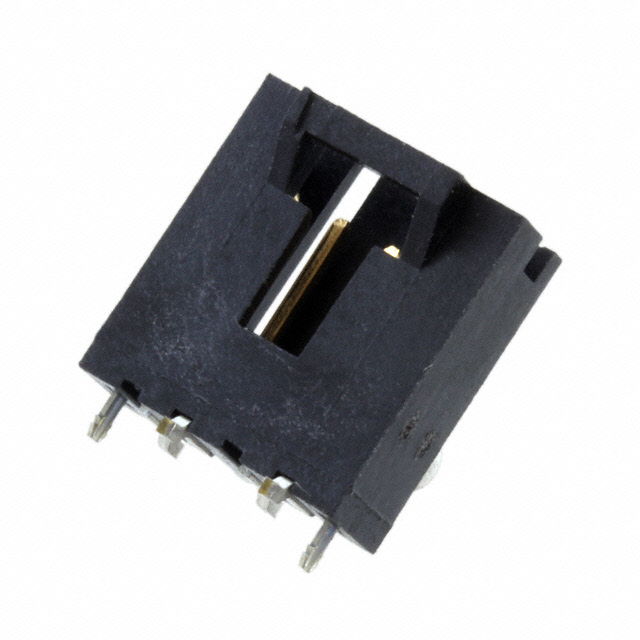

1375583-3
Or copy the link below:
- Mfr.Part #
- 1375583-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 4POS 2.54MM
- Stock
- 40,844
- In Stock ：
- 40,844
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Current Rating (Amps) :
- 3A
- Max Operating Temperature :
- 105°C
- Number of Rows :
- 1
- Contact Finish - Post :
- Tin-Lead
- Insulation Resistance :
- 5GOhm
- Contact Resistance :
- 15mOhm
- Pitch - Mating :
- 0.100 2.54mm
- Orientation :
- Vertical
- Operating Supply Voltage :
- 250V
- Pitch :
- 2.54mm
- Contact Material :
- Brass
- Length :
- 12.7mm
- Contact Current Rating :
- 3A
- Connector Type :
- Header
- Wire/Cable Type :
- Discrete
- Contact Gender :
- Male
- Current Rating :
- 3A
- Published :
- 2010
- Number of Contacts :
- 4
- Min Operating Temperature :
- -65°C
- Depth :
- 6.68mm
- Shrouding :
- Shrouded - 4 Wall
- Plating :
- Gold
- Operating Temperature :
- -65°C~105°C
- Row Spacing :
- 2.54 mm
- ELV :
- Non-Compliant
- Insulation Material :
- Thermoplastic
- Housing Material :
- Thermoplastic
- Mounting Type :
- Surface Mount
- PCB Mounting Orientation :
- Vertical
- PCB Thickness :
- 1.57mm
- Applications :
- Automotive, General Purpose, Medical, Telecommunications
- Color :
- Black
- PCB Mount Retention :
- With
- Factory Lead Time :
- 22 Weeks
- Housing Color :
- Black
- Flammability Rating :
- UL94 V-0
- Number of Positions Loaded :
- All
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Contact Finish - Mating :
- Gold
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Style :
- Board to Board or Cable
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Material Flammability Rating :
- UL94 V-0
- Contact Length - Mating :
- 0.230 5.84mm
- Fastening Type :
- Latch Holder
- Radiation Hardening :
- No
- Approval Agency :
- CSA
- Contact Shape :
- Square
- Feature :
- Board Lock, Keying Slot
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 4
- Mount :
- Surface Mount
- Series :
- AMPMODU MTE
- Packaging :
- Tape and Reel (TR)
- RoHS Status :
- Non-RoHS Compliant
- Insulation Height :
- 0.535 13.60mm
- Contact Plating :
- Gold
- Insulation Color :
- Black
- Contact Type :
- Male Pin
- Termination :
- Solder
- Datasheets
- 1375583-3
AMPMODU MTE Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount Gold Thermoplastic 4-Position Board to Board or Cable 0.535 13.60mm Height
1375583-3 Overview
A Header packaging is included.It's mounted Surface Mount.We use a Tape & Reel (TR) case to package the product.It's from the AMPMODU MTE Series.Ideally, it should be used at temperatures below 105°C.Temperatures below -65°C are required for this device.The device could be used for Automotive, General Purpose, Medical, Telecommunications.In many ways, its Board Lock, Keying Slot feature makes it more powerful.It's mounted by Surface Mount.Operating voltage is 250V.-65°C~105°C Operating Temperature is what the device runs at.
1375583-3 Features
AMPMODU MTE series
1375583-3 Applications
There are a lot of TE Connectivity AMP Connectors
1375583-3 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
