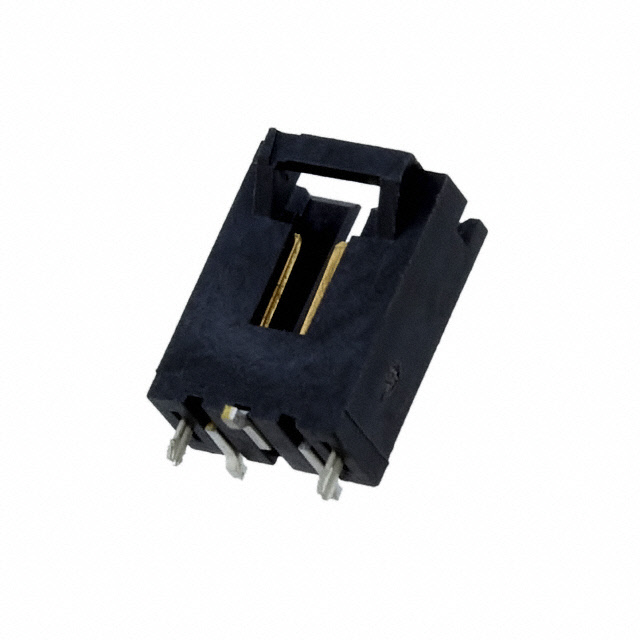

1375583-2
Or copy the link below:
- Mfr.Part #
- 1375583-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 3POS 2.54MM
- Stock
- 24,555
- In Stock ：
- 24,555
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Insulation Material :
- Thermoplastic
- Published :
- 2005
- Min Operating Temperature :
- -65°C
- Contact Current Rating :
- 3A
- Orientation :
- Vertical
- Number of Positions Loaded :
- All
- Fastening Type :
- Latch Holder
- Material Flammability Rating :
- UL94 V-0
- Contact Length - Mating :
- 0.230 5.84mm
- Style :
- Board to Board or Cable
- Current Rating (Amps) :
- 3A
- Packaging :
- Tape and Reel (TR)
- Mounting Type :
- Surface Mount
- Row Spacing :
- 2.54 mm
- Series :
- AMPMODU MTE
- Applications :
- Automotive, General Purpose, Medical, Telecommunications
- PCB Mount Retention :
- With
- PCB Mounting Orientation :
- Vertical
- Factory Lead Time :
- 22 Weeks
- Wire/Cable Type :
- Discrete
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Max Operating Temperature :
- 105°C
- Number of Contacts :
- 3
- Current Rating :
- 3A
- Insulation Resistance :
- 5GOhm
- Radiation Hardening :
- No
- Pitch - Mating :
- 0.100 2.54mm
- Pitch :
- 2.54mm
- Feature :
- Board Lock, Keying Slot
- RoHS Status :
- Non-RoHS Compliant
- Insulation Height :
- 0.535 13.60mm
- Mount :
- Surface Mount
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Color :
- Black
- Connector Type :
- Header
- Contact Type :
- Male Pin
- Termination :
- Solder
- Approval Agency :
- CSA
- Contact Material :
- Brass
- Shrouding :
- Shrouded - 4 Wall
- Housing Material :
- Thermoplastic
- Operating Temperature :
- -65°C~105°C
- Number of Positions :
- 3
- Contact Finish - Mating :
- Gold
- Contact Shape :
- Square
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish - Post :
- Tin-Lead
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Plating :
- Gold
- Contact Plating :
- Gold
- Insulation Color :
- Black
- Number of Rows :
- 1
- Housing Color :
- Black
- Operating Supply Voltage :
- 250V
- Flammability Rating :
- UL94 V-0
- ELV :
- Non-Compliant
- PCB Thickness :
- 1.57mm
- Datasheets
- 1375583-2
AMPMODU MTE Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount Gold Thermoplastic 3-Position Board to Board or Cable 0.535 13.60mm Height
1375583-2 Overview
It comes in Header packaging.The device's mounting type is Surface Mount.In order to package the product, a Tape & Reel (TR) case is used.It belongs to the AMPMODU MTE Series of products.It's best to use it when the temperature is below 105°C.This device must operate at a minimum temperature of -65°C.Automotive, General Purpose, Medical, Telecommunications is a possible application for the device.Its Board Lock, Keying Slot feature renders it more powerful in many ways.The part is mounted by Surface Mount.This memory's operating supply voltage is 250V.The device runs in -65°C~105°C Operating Temperature.
1375583-2 Features
AMPMODU MTE series
1375583-2 Applications
There are a lot of TE Connectivity AMP Connectors
1375583-2 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
