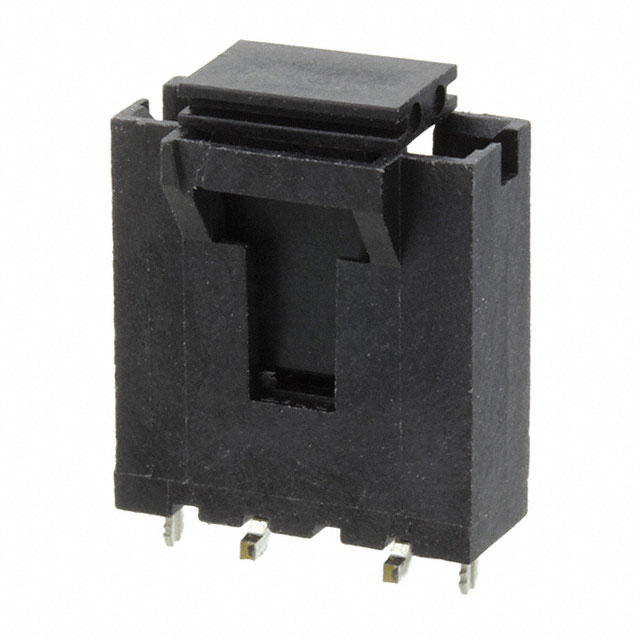

1375549-3
Or copy the link below:
- Mfr.Part #
- 1375549-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 4POS 2.54MM
- Stock
- 13,894
- In Stock ：
- 13,894
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Feature :
- Board Lock, Keying Slot
- Fastening Type :
- Latch Holder
- Number of Rows :
- 1
- Style :
- Board to Board or Cable
- Wire/Cable Type :
- Discrete
- Published :
- 2006
- Contact Type :
- Male Pin
- Orientation :
- Vertical
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Contact Plating :
- Tin
- Material Flammability Rating :
- UL94 V-0
- Contact Material :
- Brass
- Mount :
- Surface Mount
- Termination :
- Solder
- ELV :
- Non-Compliant
- Radiation Hardening :
- No
- RoHS Status :
- Non-RoHS Compliant
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Insulation Color :
- Black
- Contact Finish - Mating :
- Tin-Lead
- Contact Shape :
- Square
- Contact Length - Mating :
- 0.230 5.84mm
- Pbfree Code :
- yes
- IEC Conformance :
- No
- Operating Supply Voltage :
- 250V
- Insulation Height :
- 0.535 13.60mm
- Shrouding :
- Shrouded - 4 Wall
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Connector Type :
- Header
- Contact Current Rating :
- 3A
- Row Spacing :
- 2.54 mm
- Mounting Type :
- Surface Mount
- JESD-609 Code :
- e3
- Flammability Rating :
- UL94 V-0
- Current Rating :
- 3A
- Series :
- AMPMODU MTE
- Insulation Resistance :
- 5GOhm
- Applications :
- Automotive, General Purpose, Medical, Telecommunications
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Approval Agency :
- CSA
- Number of Positions Loaded :
- All
- Insulation Material :
- Thermoplastic
- PCB Thickness :
- 1.57mm
- Packaging :
- Tape and Reel (TR)
- PCB Mount Retention :
- With
- MIL Conformance :
- No
- Factory Lead Time :
- 42 Weeks
- Lead Free :
- Contains Lead
- Operating Temperature :
- -65°C~105°C
- Filter Feature :
- No
- Mixed Contacts :
- No
- Mating Retention :
- Without
- DIN Conformance :
- No
- Number of Positions :
- 4
- Gender :
- Male
- Total Number of Contacts :
- 24
- Pitch - Mating :
- 0.100 2.54mm
- Datasheets
- 1375549-3
AMPMODU MTE Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount Tin-Lead Thermoplastic 4-Position Board to Board or Cable 0.535 13.60mm Height
1375549-3 Overview
Packaging is Header.Surface Mount is the mounting type.Packaging for the product is carried out via a Tape & Reel (TR) case.As a product of the AMPMODU MTE Series, it can be found in this category.A possible application of the device would be Automotive, General Purpose, Medical, Telecommunications.With its Board Lock, Keying Slot feature, it is more powerful in many ways.In this case, Surface Mount mounts the part.The memory's operating supply voltage is 250V.The device is operating at -65°C~105°C Operating Temperature.
1375549-3 Features
AMPMODU MTE series
1375549-3 Applications
There are a lot of TE Connectivity AMP Connectors
1375549-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
