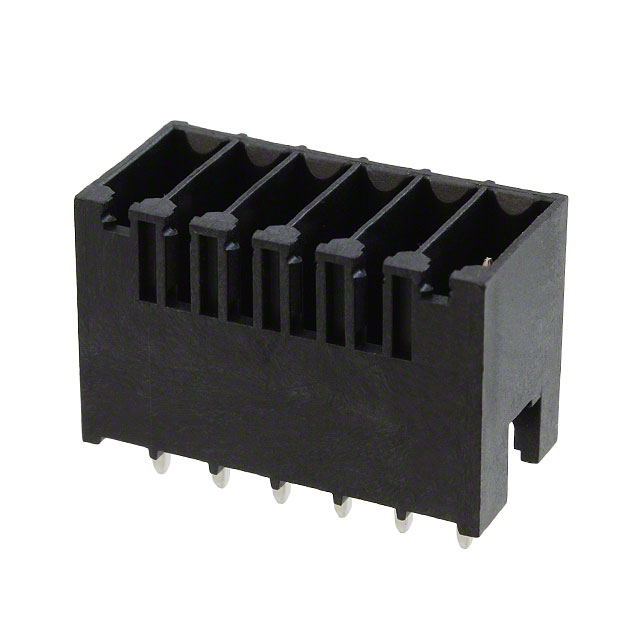

1290070000
Or copy the link below:
- Mfr.Part #
- 1290070000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 12POS VERT 3.5MM
- Stock
- 13,032
- In Stock ：
- 13,032
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Number of Levels :
- 2
- Current - IEC :
- 13.4A
- Factory Lead Time :
- 16 Weeks
- Termination Style :
- Solder
- REACH SVHC :
- No SVHC
- Contact Tail Length :
- 0.138 3.50mm
- Flammability Rating :
- UL94 V-0
- Mounting Type :
- Through Hole
- Number of Rows :
- 1
- Current :
- 10A
- Packaging :
- Bulk
- ECCN Code :
- EAR99
- Pitch :
- 0.138 3.50mm
- Ingress Protection :
- IP20
- RoHS Status :
- RoHS Compliant
- Contact Material :
- COPPER ALLOY
- Hole Diameter :
- 1.3 mm
- Contact Mating Finish :
- Tin
- Positions Per Level :
- 6
- Published :
- 2012
- Header Orientation :
- Vertical
- Material Flammability Rating :
- UL94 V-0
- Series :
- Omnimate S2C
- Voltage - IEC :
- 200V
- Color :
- Black
- Voltage :
- 150V
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Insulation Height :
- 0.559 14.20mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current Rating :
- 10A
- Voltage - Rated :
- 150V
- Operating Temperature :
- -50°C~120°C
- Number of Poles :
- 12
- Gender :
- Male
- Mount :
- Through Hole
- Housing Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Datasheets
- 1290070000
1290070000 Documents
Bulk 0.138 3.50mm Black 2 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Omnimate S2C Liquid Crystal Polymer (LCP), Glass Filled Tin Copper Alloy
1290070000 Overview
This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Omnimate S2C Series.Part Through Hole is mounted to the part.As a result, the device runs at -50°C~120°C Operating Temperature.With this part, you get a lot of benefits that you won't find in other Header, Male Pins, Shrouded (4 Side) products.
1290070000 Features
Omnimate S2C series
1290070000 Applications
There are a lot of Weidmüller
1290070000 Terminal Blocks applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
