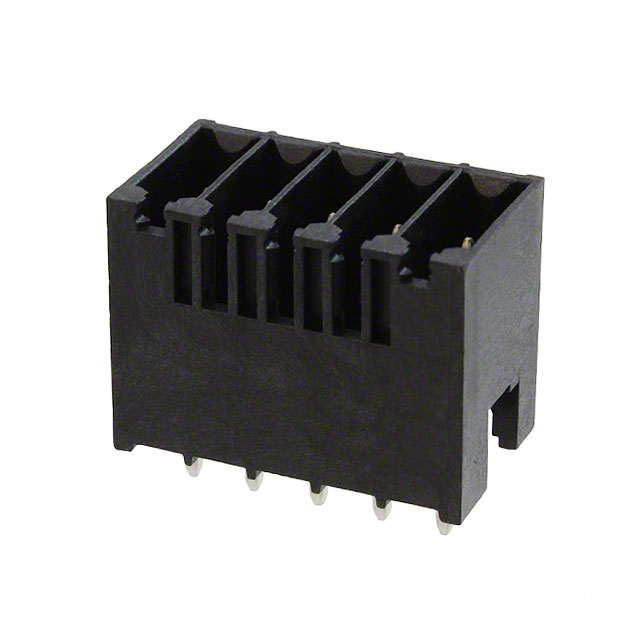

1290060000
Or copy the link below:
- Mfr.Part #
- 1290060000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 10POS VERT 3.5MM
- Stock
- 33,689
- In Stock ：
- 33,689
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Header Orientation :
- Vertical
- Operating Temperature :
- -50°C~120°C
- Current Rating :
- 10A
- RoHS Status :
- RoHS Compliant
- Material Flammability Rating :
- UL94 V-0
- Hole Diameter :
- 1.3 mm
- Published :
- 2012
- Series :
- Omnimate S2C
- Number of Levels :
- 2
- Termination Style :
- Solder
- Positions Per Level :
- 5
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Mounting Type :
- Through Hole
- ECCN Code :
- EAR99
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- Contact Mating Finish :
- Tin
- Mount :
- Through Hole
- Voltage - Rated :
- 150V
- Color :
- Black
- Current :
- 10A
- Number of Poles :
- 10
- Number of Rows :
- 1
- Gender :
- Male
- Flammability Rating :
- UL94 V-0
- Contact Tail Length :
- 0.138 3.50mm
- Factory Lead Time :
- 16 Weeks
- Current - IEC :
- 13.4A
- REACH SVHC :
- No SVHC
- Pitch :
- 0.138 3.50mm
- Ingress Protection :
- IP20
- Housing Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Contact Material :
- COPPER ALLOY
- Voltage :
- 150V
- Voltage - IEC :
- 200V
- Insulation Height :
- 0.559 14.20mm
- Datasheets
- 1290060000
1290060000 Documents
Bulk 0.138 3.50mm Black 2 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Omnimate S2C Liquid Crystal Polymer (LCP), Glass Filled Tin Copper Alloy
1290060000 Overview
This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Omnimate S2C Series.Part Through Hole is mounted to the part.As a result, the device runs at -50°C~120°C Operating Temperature.With this part, you get a lot of benefits that you won't find in other Header, Male Pins, Shrouded (4 Side) products.
1290060000 Features
Omnimate S2C series
1290060000 Applications
There are a lot of Weidmüller
1290060000 Terminal Blocks applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
