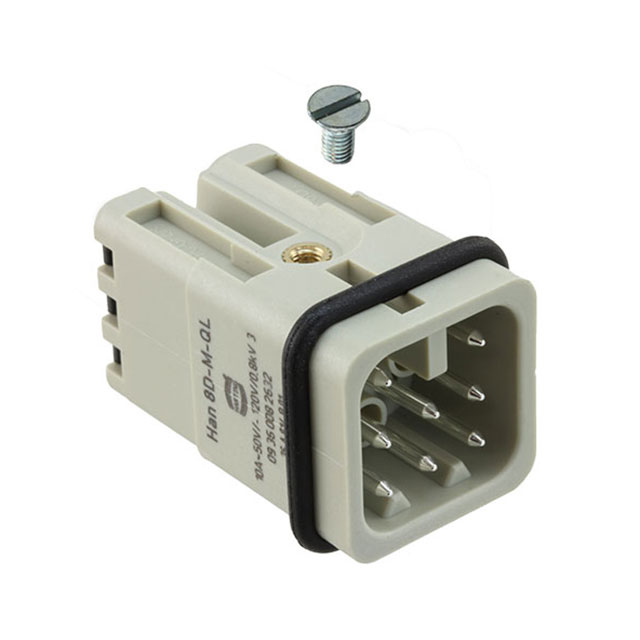

09360082632
Or copy the link below:
- Mfr.Part #
- 09360082632
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- INSERT MALE 8POS PUSH IN LOCK
- Stock
- 7,280
- In Stock ：
- 7,280
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Inserts, Modules
- Wire Gauge (Max) :
- 22 AWG
- Max Current Rating :
- 10A
- Factory Lead Time :
- 5 Weeks
- Material Flammability Rating :
- UL94 V-0
- Color :
- Gray
- Gender :
- Male
- Current Rating :
- 10A
- Number of Rows :
- 4
- Option :
- GENERAL PURPOSE
- IEC Conformance :
- No
- Length :
- 21mm
- Depth :
- 37.8mm
- Size :
- 3A
- Packaging :
- Bulk
- Operating Temperature :
- -40°C~125°C
- Flammability Rating :
- UL94 V-0
- Mounting Type :
- CABLE
- Empty Shell :
- No
- MIL Conformance :
- No
- Connector Type :
- INSERT
- Filter Feature :
- No
- Total Number of Contacts :
- 8
- Wire Gauge (Min) :
- 16 AWG
- REACH SVHC :
- No SVHC
- Contact Material :
- COPPER ALLOY
- Voltage - Rated :
- 50V
- Housing Material :
- Polycarbonate (PC)
- Termination Style :
- Push In with Lock
- JESD-609 Code :
- e4
- Series :
- Han® 8D
- Contact Finish :
- Silver
- RoHS Status :
- ROHS3 Compliant
- DIN Conformance :
- yes
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mixed Contacts :
- No
- Number of Positions :
- 8
- Orientation :
- Straight
- Datasheets
- 09360082632
09360082632 Documents
09360082632 datasheet pdf and Heavy Duty Connectors - Inserts, Modules product details from HARTING stock available at Xinshop
