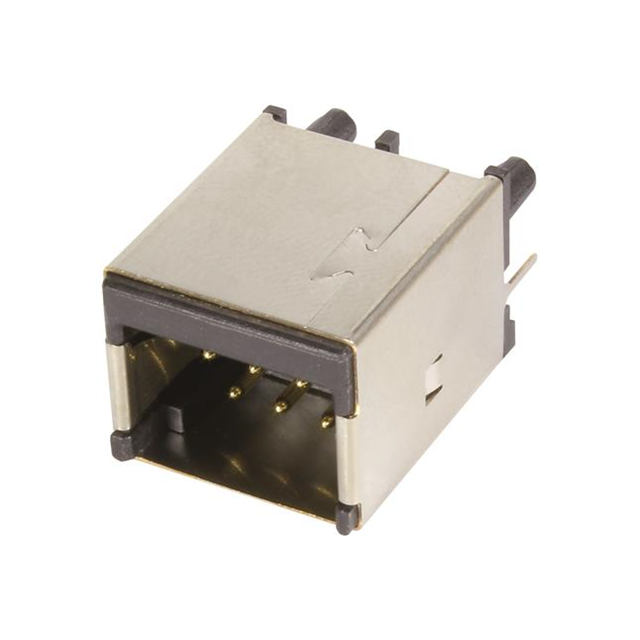

09350026002
Or copy the link below:
- Mfr.Part #
- 09350026002
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 10POS 3MM
- Stock
- 27,740
- In Stock ：
- 27,740
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Headers, Male Pins
- Contact Type :
- Male Pin
- Contact Finish - Post :
- Tin
- Contact Length - Post :
- 0.181 4.60mm
- Number of Positions Loaded :
- All
- Material Flammability Rating :
- UL94 V-0
- Insulation Height :
- 0.764 19.40mm
- Contact Shape :
- Circular
- Voltage - Rated :
- 50V
- Contact Material :
- COPPER ALLOY
- Insulation Material :
- Polyamide (PA), Nylon
- Series :
- Han® PushPull
- Current Rating (Amps) :
- 2.5A
- Factory Lead Time :
- 11 Weeks
- Pitch - Mating :
- 0.118 3.00mm
- Connector Type :
- Header
- Number of Positions :
- 10
- Termination :
- Solder
- RoHS Status :
- RoHS Compliant
- Packaging :
- Bulk
- Contact Finish - Mating :
- Gold
- Operating Temperature :
- -40°C~85°C
- Mounting Type :
- Through Hole
- Contact Length - Mating :
- 0.217 5.50mm
- Row Spacing - Mating :
- 0.094 (2.40mm)
- Number of Rows :
- 3
- Feature :
- Board Guide
- Insulation Color :
- Black
- Shrouding :
- Shrouded - 4 Wall
- Fastening Type :
- Push-Pull
- Datasheets
- 09350026002
09350026002 Documents
Han® PushPull Series 3-Row Header Solder Copper Alloy Bulk Through Hole Gold Polyamide (PA), Nylon 10-Position 0.764 19.40mm Height
09350026002 Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the Han® PushPull Series of products.A number of features make it more powerful because of its Board Guide feature.There is no operating temperature for the device.
09350026002 Features
Han® PushPull series
09350026002 Applications
There are a lot of HARTING
09350026002 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
