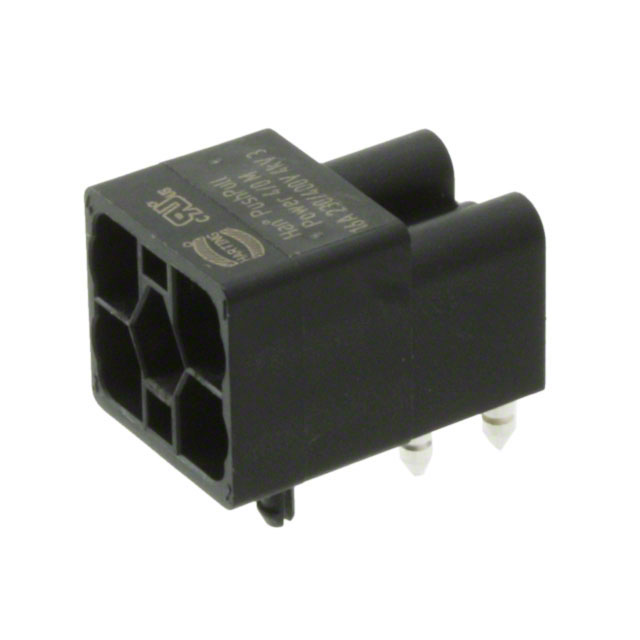

09350023003
Or copy the link below:
- Mfr.Part #
- 09350023003
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 5POS
- Stock
- 20,842
- In Stock ：
- 20,842
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Headers, Male Pins
- Empty Shell :
- No
- Insulation Height :
- 0.583 14.80mm
- Total Number of Contacts :
- 5
- Number of Positions Loaded :
- All
- Current Rating (Amps) :
- 16A
- IEC Conformance :
- No
- Voltage - Rated :
- 690V
- Contact Material :
- NOT SPECIFIED
- Feature :
- Board Lock
- Option :
- GENERAL PURPOSE
- Mounting Type :
- Through Hole, Right Angle
- Factory Lead Time :
- 9 Weeks
- Contact Type :
- Male Pin
- Fastening Type :
- Push-Pull
- Termination :
- Solder
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish - Mating :
- NOT SPECIFIED
- Material Flammability Rating :
- UL94 V-0
- Contact Shape :
- Circular
- Style :
- Board to Cable/Wire
- Insulation Color :
- Black
- Mixed Contacts :
- No
- Shrouding :
- Shrouded - 4 Wall
- MIL Conformance :
- No
- Series :
- Han® PushPull
- Insulation Material :
- Thermoplastic
- Packaging :
- Bulk
- Connector Type :
- INSERT
- DIN Conformance :
- No
- Operating Temperature :
- -40°C~70°C
- Filter Feature :
- No
- Mount :
- Through Hole
- Number of Positions :
- 5
- Datasheets
- 09350023003
Han® PushPull Series Insert Solder NOT SPECIFIED Bulk Through Hole, Right Angle NOT SPECIFIED Thermoplastic 5-Position Board to Cable/Wire 0.583 14.80mm Height
09350023003 Overview
It comes in Insert packaging.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Bulk case is used.It belongs to the Han® PushPull Series of products.Its Board Lock feature renders it more powerful in many ways.The part is mounted by Through Hole.The device runs in -40°C~70°C Operating Temperature.
09350023003 Features
Han® PushPull series
09350023003 Applications
There are a lot of HARTING
09350023003 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
