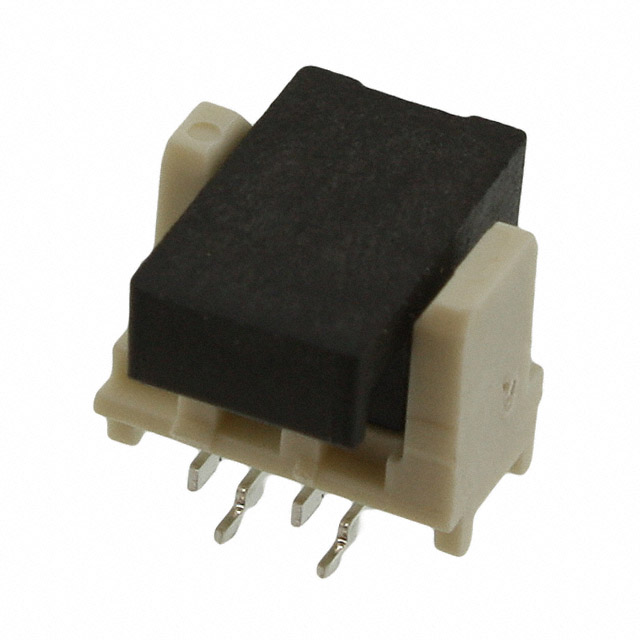

0934050504
Or copy the link below:
- Mfr.Part #
- 0934050504
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 4POS 1.27MM
- Stock
- 39,968
- In Stock ：
- 39,968
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Insulation Color :
- Natural
- Number of Positions Loaded :
- All
- Termination :
- Solder
- Contact Length - Mating :
- 0.085 2.15mm
- Number of Positions :
- 4
- Shrouding :
- Shrouded - 2 Wall
- Insulation Material :
- Polyamide (PA), Nylon, Glass Filled
- Mounting Type :
- Surface Mount
- Connector Type :
- Header
- Number of Rows :
- 1
- Pitch - Mating :
- 0.050 1.27mm
- Contact Shape :
- RECTANGULAR
- Insulation Height :
- 0.203 5.16mm
- Packaging :
- Tape and Reel (TR)
- Contact Type :
- Male Blade
- Series :
- Picoflex 93405
- Contact Material :
- Cartridge Brass
- Operating Temperature :
- -40°C~105°C
- Current Rating (Amps) :
- 1.2A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Fastening Type :
- Push-Pull
- Contact Finish - Mating :
- Tin
- Contact Finish Thickness - Mating :
- 118.1μin 3.00μm
- Applications :
- Automotive, General Purpose, Industrial, Medical
- Style :
- Board to Cable/Wire
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Voltage - Rated :
- 250V
- RoHS Status :
- ROHS3 Compliant
- Datasheets
- 0934050504
0934050504 Documents
Picoflex 93405 Series 1-Row Header Solder Cartridge Brass Tape & Reel (TR) Surface Mount Tin Polyamide (PA), Nylon, Glass Filled 4-Position Board to Cable/Wire 0.203 5.16mm Height
0934050504 Overview
The packaging contains Header.There is a Surface Mount mounting type for the device.This product is packaged in a case marked Tape & Reel (TR).Product number Picoflex 93405 belongs to the Picoflex 93405 Series.In addition to Automotive, General Purpose, Industrial, Medical, there are other possible applications for the device.This device operates at a temperature of -40°C~105°C.
0934050504 Features
Picoflex 93405 series
0934050504 Applications
There are a lot of Molex
0934050504 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
