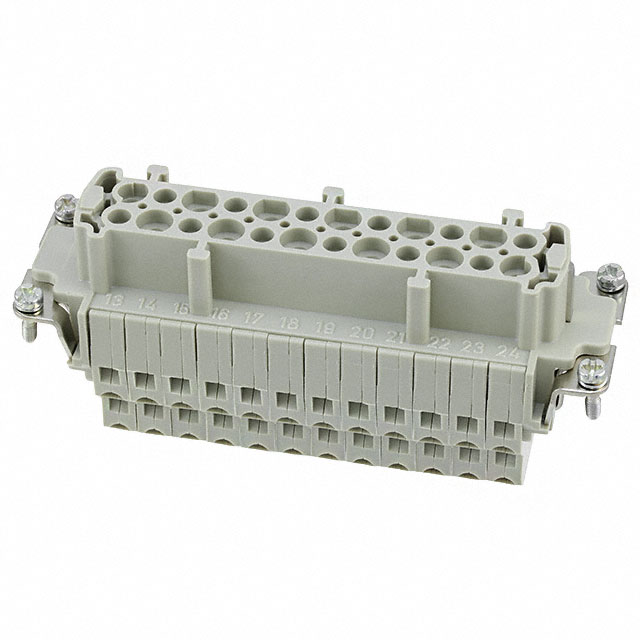

09330242772
Or copy the link below:
- Mfr.Part #
- 09330242772
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- INSERT FEMALE 24POS+1GND PUSH IN
- Stock
- 89
- In Stock ：
- 89
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Inserts, Modules
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Material :
- Polycarbonate (PC)
- Termination :
- Crimp
- Color :
- Gray
- Operating Temperature :
- -40°C~125°C
- MIL Conformance :
- No
- Material Flammability Rating :
- UL94 V-0
- Wire Gauge (Min) :
- 26 AWG
- Size :
- 24b
- Voltage - Rated :
- 500V
- Current Rating :
- 16A
- Orientation :
- Straight
- Packaging :
- Bulk
- Factory Lead Time :
- 4 Weeks
- Depth :
- 48.5mm
- Number of Pins :
- 24
- Number of Positions :
- 24+Ground
- Connector Type :
- INSERT
- Gender :
- FEMALE
- IEC Conformance :
- No
- Series :
- Han® ESS
- Pbfree Code :
- yes
- DIN Conformance :
- No
- Number of Rows :
- 2
- Option :
- GENERAL PURPOSE
- Max Current Rating :
- 16A
- Wire Gauge (Max) :
- 14 AWG
- Contact Material :
- COPPER ALLOY
- RoHS Status :
- ROHS3 Compliant
- Flammability Rating :
- UL94 V-0
- Number of Contacts :
- 25
- Contact Finish :
- Silver
- Length :
- 111mm
- Termination Style :
- Push In
- Datasheets
- 09330242772
