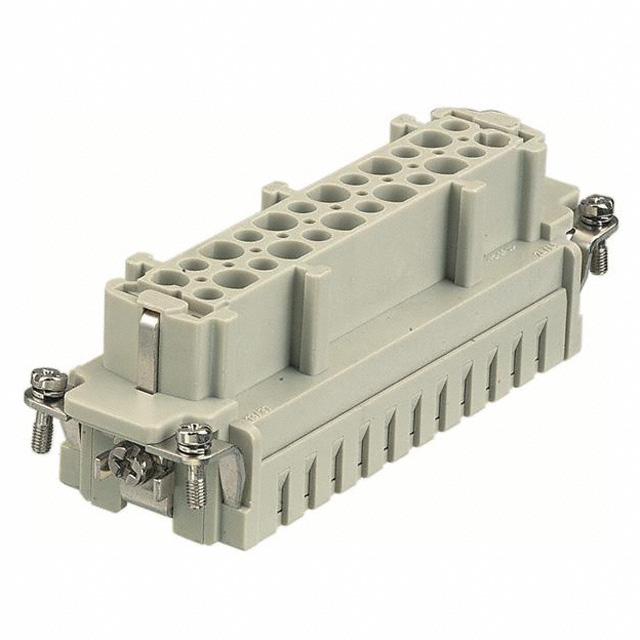

09330242702
Or copy the link below:
- Mfr.Part #
- 09330242702
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- INSERT FEMALE 24POS+1GND CRIMP
- Stock
- 2
- In Stock ：
- 2
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Inserts, Modules
- RoHS Status :
- ROHS3 Compliant
- Ratings :
- IP65
- Current Rating :
- 16A
- Number of Contacts :
- 24
- Max Current Rating :
- 16A
- Operating Temperature :
- -40°C~125°C
- Contact Type :
- Han®
- Housing Material :
- Polycarbonate (PC)
- Material Flammability Rating :
- UL94 V-0
- Packaging :
- Bulk
- Working Voltage :
- 380V
- Depth :
- 35.5mm
- Pbfree Code :
- yes
- Connector Type :
- Insert without Contacts
- Size :
- 24b
- Voltage - Rated AC :
- 380V
- Voltage - Rated DC :
- 500V
- Orientation :
- Straight
- Option :
- GENERAL PURPOSE
- Contact Finish - Mating :
- NOT SPECIFIED
- MIL Conformance :
- No
- Gender :
- FEMALE
- Length :
- 111mm
- Test Current :
- 16A
- Termination Style :
- Crimp
- Flammability Rating :
- UL94 V-0
- Number of Positions :
- 24+Ground
- REACH SVHC :
- No SVHC
- Wire Gauge (Min) :
- 20 AWG
- Color :
- Gray
- Contact Material :
- NOT SPECIFIED
- Number of Rows :
- 2
- Factory Lead Time :
- 4 Weeks
- DIN Conformance :
- No
- HTS Code :
- 8536.69.80.00
- IEC Conformance :
- No
- ECCN Code :
- EAR99
- Wire Gauge (Max) :
- 12 AWG
- Series :
- Han® E
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 09330242702
09330242702 Documents
09330242702 datasheet pdf and Heavy Duty Connectors - Inserts, Modules product details from HARTING stock available at Xinshop
