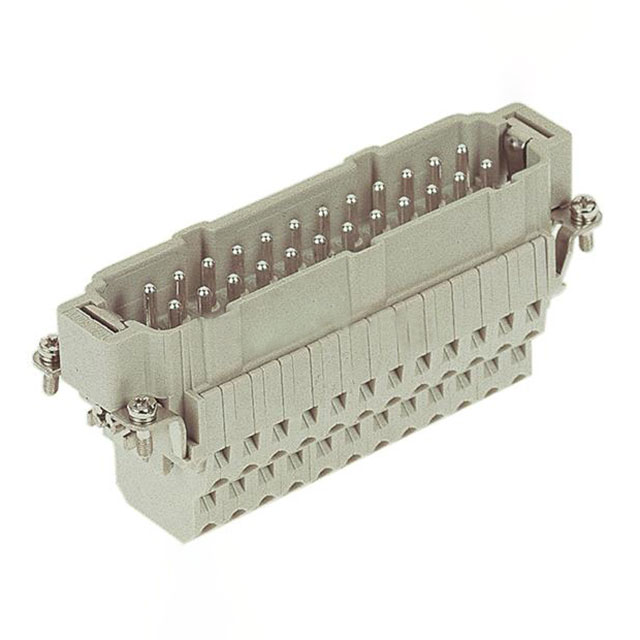

09330242672
Or copy the link below:
- Mfr.Part #
- 09330242672
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- INSERT MALE 24POS+1GND PUSH IN
- Stock
- 25,661
- In Stock ：
- 25,661
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Inserts, Modules
- Operating Temperature :
- -40°C~125°C
- DIN Conformance :
- No
- RoHS Status :
- ROHS3 Compliant
- Contact Material :
- COPPER ALLOY
- Connector Type :
- INSERT
- Series :
- Han® ESS
- Max Current Rating :
- 16A
- Termination Style :
- Push In
- Color :
- Gray
- Contact Finish :
- Silver
- Voltage - Rated :
- 500V
- Size :
- 24b
- MIL Conformance :
- No
- Pbfree Code :
- yes
- Gender :
- Male
- Housing Material :
- Polycarbonate (PC)
- Packaging :
- Bulk
- Factory Lead Time :
- 4 Weeks
- Flammability Rating :
- UL94 V-0
- Option :
- GENERAL PURPOSE
- Number of Pins :
- 24
- Material Flammability Rating :
- UL94 V-0
- IEC Conformance :
- No
- Orientation :
- RIGHT ANGLE
- Current Rating :
- 16A
- Number of Rows :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 24+Ground
- Length :
- 111mm
- Datasheets
- 09330242672
09330242672 Documents
09330242672 datasheet pdf and Heavy Duty Connectors - Inserts, Modules product details from HARTING stock available at Xinshop
