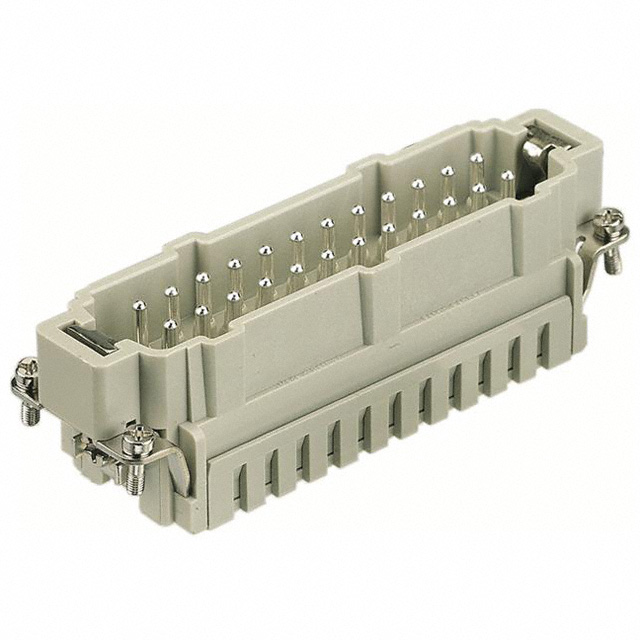

09330242616
Or copy the link below:
- Mfr.Part #
- 09330242616
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- INSERT MALE 24POS+1GND PUSH IN
- Stock
- 2
- In Stock ：
- 2
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Inserts, Modules
- Max Current Rating :
- 16A
- Factory Lead Time :
- 4 Weeks
- Orientation :
- Straight
- ECCN Code :
- EAR99
- Option :
- GENERAL PURPOSE
- DIN Conformance :
- No
- REACH SVHC :
- No SVHC
- Voltage - Rated DC :
- 380V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated AC :
- 380V
- Housing Material :
- Polycarbonate (PC)
- Color :
- Gray
- RoHS Status :
- ROHS3 Compliant
- Test Current :
- 16A
- Connector Type :
- INSERT
- Material Flammability Rating :
- UL94 V-0
- Length :
- 111mm
- Depth :
- 34mm
- Contact Material :
- COPPER ALLOY
- Operating Temperature :
- -40°C~125°C
- MIL Conformance :
- No
- Pbfree Code :
- yes
- Flammability Rating :
- UL94 V-0
- Number of Pins :
- 24
- Number of Positions :
- 24+Ground
- Current Rating :
- 16A
- Lead Free :
- Lead Free
- Wire/Cable Gauge :
- 14 AWG
- Series :
- Han® ES
- HTS Code :
- 8536.69.40.30
- Size :
- 24b
- Termination Style :
- Push In
- Termination :
- Crimp
- Number of Rows :
- 2
- IEC Conformance :
- No
- Gender :
- Male
- Packaging :
- Bulk
- Contact Finish :
- Silver
- Datasheets
- 09330242616
