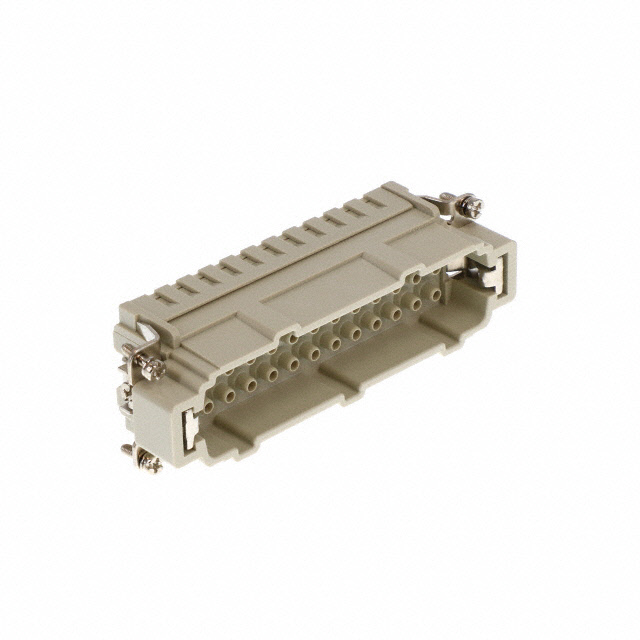

09330242602
Or copy the link below:
- Mfr.Part #
- 09330242602
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- INSERT MALE 24POS+1GND CRIMP
- Stock
- 12
- In Stock ：
- 12
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Inserts, Modules
- Flammability Rating :
- UL94 V-0
- Number of Positions :
- 24+Ground
- Option :
- GENERAL PURPOSE
- DIN Conformance :
- No
- Number of Rows :
- 2
- Test Current :
- 16A
- Wire Gauge (Max) :
- 12 AWG
- Current Rating :
- 16A
- Operating Temperature :
- -40°C~125°C
- Ratings :
- IP65
- Factory Lead Time :
- 5 Weeks
- MIL Conformance :
- No
- ECCN Code :
- EAR99
- Contact Material :
- NOT SPECIFIED
- Series :
- Han® E
- Gender :
- Male
- REACH SVHC :
- No SVHC
- Material Flammability Rating :
- UL94 V-0
- Orientation :
- Straight
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- Voltage - Rated AC :
- 380V
- Depth :
- 33.3mm
- HTS Code :
- 8536.69.80.00
- Contact Finish - Mating :
- NOT SPECIFIED
- Number of Poles :
- 24
- Pbfree Code :
- yes
- Length :
- 111mm
- Color :
- Gray
- Voltage - Rated DC :
- 380V
- Wire Gauge (Min) :
- 20 AWG
- Housing Material :
- Polycarbonate (PC)
- Connector Type :
- Insert without Contacts
- Max Current Rating :
- 16A
- Termination Style :
- Crimp
- Contact Type :
- Han®
- Size :
- 24b
- Working Voltage :
- 380V
- RoHS Status :
- ROHS3 Compliant
- IEC Conformance :
- No
- Datasheets
- 09330242602
09330242602 Documents
09330242602 datasheet pdf and Heavy Duty Connectors - Inserts, Modules product details from HARTING stock available at Xinshop
