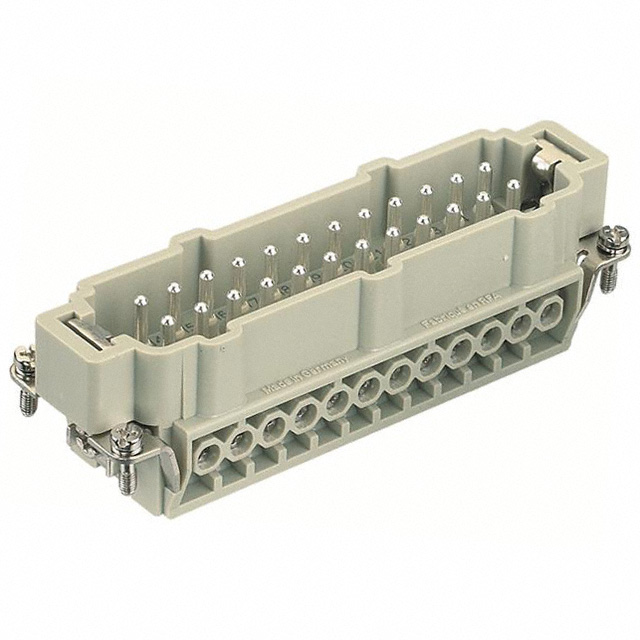

09330242601
Or copy the link below:
- Mfr.Part #
- 09330242601
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- INSERT MALE 24POS+1GND SCREW
- Stock
- 11
- In Stock ：
- 11
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Inserts, Modules
- IEC Conformance :
- No
- Mounting Option 1 :
- M3
- Factory Lead Time :
- 4 Weeks
- Total Number of Contacts :
- 24
- Mounting Type :
- CABLE
- Size :
- 24b
- Number of Positions :
- 24+Ground
- Termination Style :
- Screw
- Contact Style :
- RND PIN-SKT
- Contact Finish :
- Silver
- Body Breadth :
- 1.339 inch
- Flammability Rating :
- UL94 V-0
- Housing Material :
- Polycarbonate (PC)
- Depth :
- 32.4mm
- Operating Temperature :
- -40°C~125°C
- Orientation :
- Straight
- Working Voltage :
- 380V
- Length :
- 111mm
- Contact Material :
- COPPER ALLOY
- REACH SVHC :
- No SVHC
- DIN Conformance :
- No
- Color :
- Gray
- HTS Code :
- 8536.69.80.00
- Body/Shell Style :
- Receptacle
- Reliability :
- COMMERCIAL
- Wire Gauge (Min) :
- 18 AWG
- Connector Type :
- INSERT
- Test Current :
- 16A
- Voltage - Rated AC :
- 380V
- Mixed Contacts :
- yes
- RoHS Status :
- ROHS3 Compliant
- Ratings :
- IP65
- ECCN Code :
- EAR99
- Number of Conductors :
- ONE
- Insulation Resistance :
- 10GOhm
- Pbfree Code :
- yes
- Packaging :
- Bulk
- Reference Standard :
- UL, CSA
- Option :
- GENERAL PURPOSE
- Voltage - Rated DC :
- 500V
- Current Rating :
- 16A
- Gender :
- Male
- MIL Conformance :
- No
- Wire Gauge (Max) :
- 14 AWG
- Material Flammability Rating :
- UL94 V-0
- Additional Feature :
- RoHS Compliant
- Durability :
- 500 Cycles
- Series :
- Han® E
- Number of Rows :
- 2
- Contact Resistance :
- 1MOhm
- Number of Poles :
- 24
- Max Current Rating :
- 16A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 09330242601
