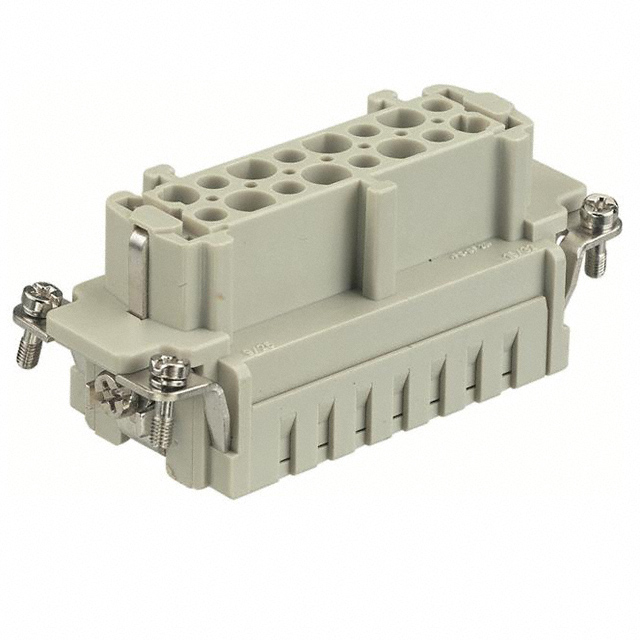

09330162702
Or copy the link below:
- Mfr.Part #
- 09330162702
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- INSERT FEMALE 16POS+1GND CRIMP
- Stock
- 3
- In Stock ：
- 3
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Inserts, Modules
- MIL Conformance :
- No
- Voltage - Rated DC :
- 500V
- ECCN Code :
- EAR99
- Wire Gauge (Min) :
- 20 AWG
- Contact Finish - Mating :
- NOT SPECIFIED
- Termination Style :
- Crimp
- Depth :
- 35.5mm
- Housing Material :
- Polycarbonate (PC)
- Contact Material :
- Copper
- Flammability Rating :
- UL94 V-0
- Connector Type :
- Insert without Contacts
- Gender :
- FEMALE
- Length :
- 84.5mm
- Pbfree Code :
- yes
- Orientation :
- Straight
- REACH SVHC :
- No SVHC
- Option :
- GENERAL PURPOSE
- Number of Contacts :
- 16
- Wire Gauge (Max) :
- 12 AWG
- Factory Lead Time :
- 4 Weeks
- Series :
- Han® E
- Number of Positions :
- 16+Ground
- Test Current :
- 16A
- Max Current Rating :
- 16A
- Packaging :
- Bulk
- Color :
- Gray
- Size :
- 16b
- Number of Rows :
- 2
- Operating Temperature :
- -40°C~125°C
- RoHS Status :
- ROHS3 Compliant
- Material Flammability Rating :
- UL94 V-0
- DIN Conformance :
- No
- Contact Type :
- Han®
- HTS Code :
- 8536.69.80.00
- Current Rating :
- 16A
- Voltage - Rated AC :
- 380V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Ratings :
- IP65
- Working Voltage :
- 380V
- IEC Conformance :
- No
- Datasheets
- 09330162702
