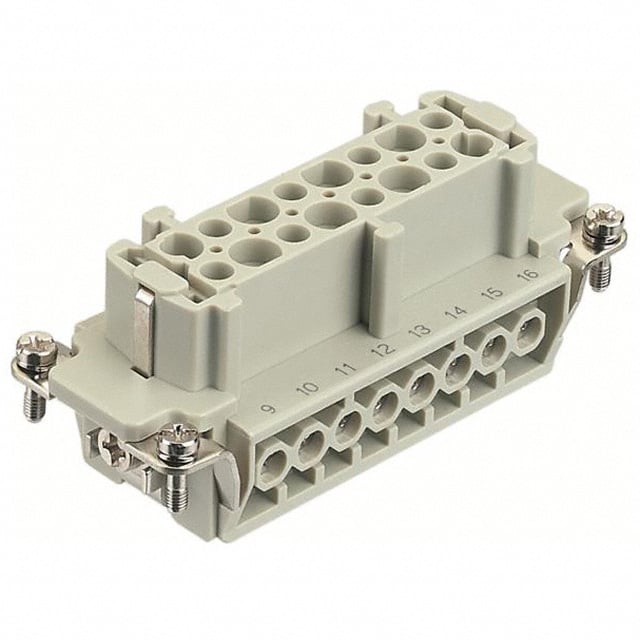

09330162701
Or copy the link below:
- Mfr.Part #
- 09330162701
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- INSERT FEMALE 16POS+1GND SCREW
- Stock
- 5
- In Stock ：
- 5
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Inserts, Modules
- Depth :
- 34.6mm
- Factory Lead Time :
- 5 Weeks
- Size :
- 16b
- Total Number of Contacts :
- 16
- Operating Supply Voltage :
- 600V
- Flammability Rating :
- UL94 V-0
- Connector Type :
- INSERT
- Insulation Resistance :
- 10000000000Ohm
- Additional Feature :
- RoHS Compliant
- Current Rating :
- 16A
- Body/Shell Style :
- PLUG
- Wire Gauge (Max) :
- 14 AWG
- Material :
- Polycarbonate
- Contact Style :
- RND PIN-SKT
- Color :
- Gray
- Termination Style :
- Screw
- Gender :
- FEMALE
- Series :
- Han® E
- Option :
- GENERAL PURPOSE
- Number of Conductors :
- ONE
- Body Breadth :
- 1.339 inch
- Number of Positions :
- 16+Ground
- Ratings :
- IP65
- Wire Gauge (Min) :
- 18 AWG
- Contact Finish :
- Silver
- Pbfree Code :
- yes
- MIL Conformance :
- No
- IEC Conformance :
- No
- Voltage - Rated AC :
- 380V
- Test Current :
- 16A
- RoHS Status :
- ROHS3 Compliant
- Material Flammability Rating :
- UL94 V-0
- Packaging :
- Bulk
- Orientation :
- Straight
- Housing Material :
- Polycarbonate (PC)
- Contact Resistance :
- 1MOhm
- Number of Rows :
- 2
- Working Voltage :
- 380V
- Operating Temperature :
- -40°C~125°C
- Reference Standard :
- UL, CSA
- Lead Free :
- Lead Free
- Max Current Rating :
- 16A
- Durability :
- 500 Cycles
- Length :
- 84.5mm
- Voltage - Rated DC :
- 500V
- Mixed Contacts :
- yes
- DIN Conformance :
- No
- Number of Pins :
- 16
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- REACH SVHC :
- No SVHC
- HTS Code :
- 8536.69.80.00
- ECCN Code :
- EAR99
- Mounting Type :
- CABLE
- Contact Material :
- COPPER ALLOY
- Reliability :
- COMMERCIAL
- Mounting Option 1 :
- M3
- Datasheets
- 09330162701
