Mfr.Part #
09330162601
Manufacturer
HARTING
Package / Case
Datasheet
Download
Description

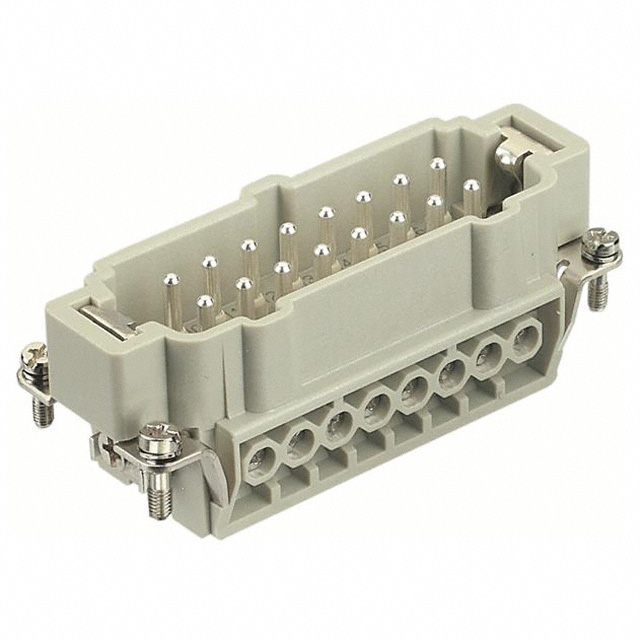

INSERT MALE 16POS+1GND SCREW
Stock
1
In Stock :
1

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
HARTING
Product Category :
Heavy Duty Connector Inserts, Modules
REACH SVHC :
No SVHC
Housing Material :
Polycarbonate (PC)
Orientation :
Straight
Material :
Polycarbonate
Body Breadth :
1.339 inch
Series :
Han® E
RoHS Status :
ROHS3 Compliant
Number of Rows :
2
Number of Positions :
16+Ground
Factory Lead Time :
4 Weeks
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Option :
GENERAL PURPOSE
Color :
Gray
Contact Material :
COPPER ALLOY
Ratings :
IP65
Test Current :
16A
Gender :
Male
Pbfree Code :
yes
Size :
16b
Additional Feature :
RoHS Compliant
Wire Gauge (Max) :
14 AWG
Flammability Rating :
UL94 V-0
Durability :
500 Cycles
Mounting Option 1 :
M3
DIN Conformance :
No
Material Flammability Rating :
UL94 V-0
Voltage - Rated AC :
380V
Total Number of Contacts :
16
Mixed Contacts :
yes
Reliability :
COMMERCIAL
Contact Resistance :
1MOhm
Reference Standard :
UL, CSA
Wire Gauge (Min) :
18 AWG
Current Rating :
16A
HTS Code :
8536.69.80.00
Working Voltage :
380V
Voltage - Rated DC :
500V
Depth :
32.4mm
IEC Conformance :
No
Connector Type :
INSERT
Number of Conductors :
ONE
Wire/Cable Gauge :
14 AWG
Max Current Rating :
16A
Packaging :
Bulk
Length :
84.5mm
Insulation Resistance :
10GOhm
Number of Pins :
16
Termination Style :
Screw
Contact Style :
RND PIN-SKT
Contact Finish :
Silver
MIL Conformance :
No
Body/Shell Style :
Receptacle
ECCN Code :
EAR99
Operating Temperature :
-40°C~125°C
