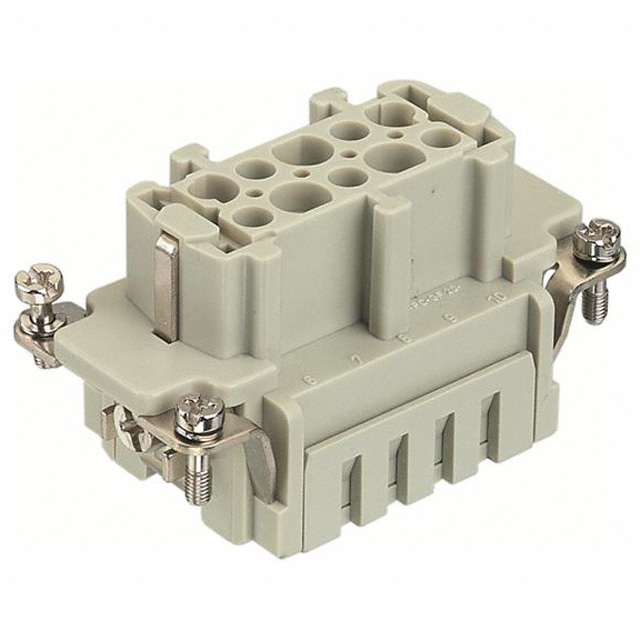

09330102716
Or copy the link below:
- Mfr.Part #
- 09330102716
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- INSERT FEMALE 10POS+1GND PUSH IN
- Stock
- 4
- In Stock ：
- 4
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Inserts, Modules
- Factory Lead Time :
- 6 Weeks
- ECCN Code :
- EAR99
- REACH SVHC :
- No SVHC
- Number of Pins :
- 10
- Current Rating :
- 16A
- Max Current Rating :
- 16A
- Packaging :
- Bulk
- Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated AC :
- 380V
- Gender :
- FEMALE
- Termination :
- Screw
- Color :
- Gray
- Voltage - Rated DC :
- 500V
- Contact Finish :
- Silver
- Number of Rows :
- 2
- Depth :
- 35.6mm
- Connector Type :
- INSERT
- Pbfree Code :
- yes
- Test Current :
- 16A
- Number of Positions :
- 10+Ground
- Working Voltage :
- 380V
- Termination Style :
- Push In
- Operating Temperature :
- -40°C~125°C
- Wire/Cable Gauge :
- 14 AWG
- HTS Code :
- 8536.69.40.30
- Size :
- 10b
- Orientation :
- Straight
- Housing Material :
- Polycarbonate (PC)
- Length :
- 64mm
- MIL Conformance :
- No
- Contact Material :
- COPPER ALLOY
- IEC Conformance :
- No
- Series :
- Han® ES
- Option :
- GENERAL PURPOSE
- DIN Conformance :
- No
- RoHS Status :
- ROHS3 Compliant
- Material Flammability Rating :
- UL94 V-0
- Datasheets
- 09330102716
