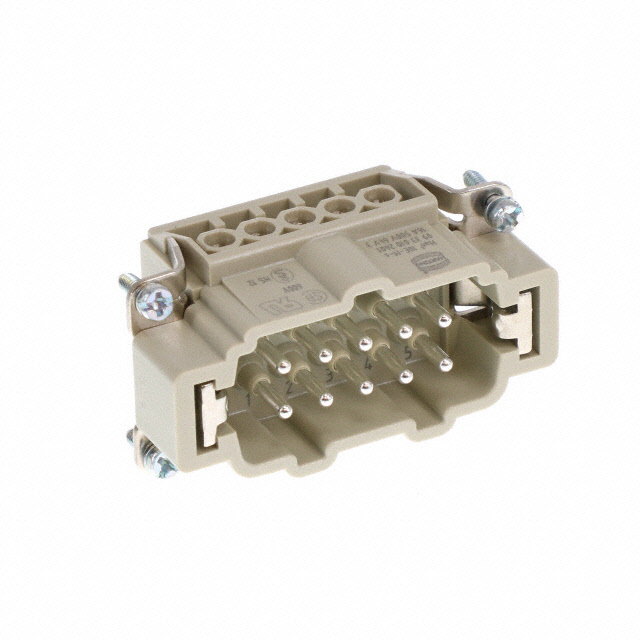

09330102601
Or copy the link below:
- Mfr.Part #
- 09330102601
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- INSERT MALE 10POS+1GND SCREW
- Stock
- 27
- In Stock ：
- 27
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Inserts, Modules
- Contact Resistance :
- 1MOhm
- Contact Plating :
- Silver
- Flammability Rating :
- UL94 V-0
- Max Current Rating :
- 16A
- Color :
- Gray
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Min Operating Temperature :
- -40°C
- Packaging :
- Bulk
- Size :
- 10b
- Number of Pins :
- 10
- Current Rating (Amps) :
- 16A
- Housing Material :
- Polycarbonate (PC)
- Voltage - Rated DC :
- 500V
- Number of Rows :
- 2
- Ratings :
- IP65
- Max Operating Temperature :
- 125°C
- REACH SVHC :
- No SVHC
- Number of Contacts :
- 10
- Current Rating :
- 16A
- Connector Type :
- INSERT
- Wire Gauge (Min) :
- 18 AWG
- Working Voltage :
- 380V
- Factory Lead Time :
- 4 Weeks
- Length :
- 64mm
- Orientation :
- Straight
- Gender :
- Male
- Contact Finish :
- Silver
- Voltage - Rated AC :
- 380V
- Termination :
- Screw
- Number of Positions :
- 10+Ground
- Contact Material :
- COPPER ALLOY
- Termination Style :
- Screw
- Wire Gauge (Max) :
- 14 AWG
- Body Material :
- Polycarbonate
- Series :
- Han® E
- Material Flammability Rating :
- UL94 V-0
- Voltage - Rated :
- 600V
- Insulation Resistance :
- 10GOhm
- Operating Temperature :
- -40°C~125°C
- Depth :
- 32.4mm
- Contact Gender :
- Male
- Test Current :
- 16A
- Number of Poles :
- 10
- Datasheets
- 09330102601
