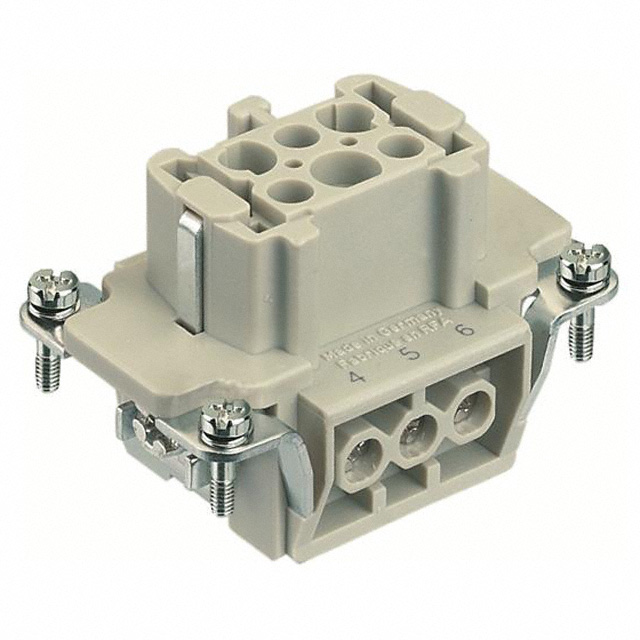

09330062701
Or copy the link below:
- Mfr.Part #
- 09330062701
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- INSERT FEMALE 6POS+1GND SCREW
- Stock
- 60
- In Stock ：
- 60
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Inserts, Modules
- Reference Standard :
- UL, CSA
- ECCN Code :
- EAR99
- Option :
- GENERAL PURPOSE
- Voltage - Rated AC :
- 380V
- Packaging :
- Bulk
- Working Voltage :
- 380V
- Number of Pins :
- 6
- Material Flammability Rating :
- UL94 V-0
- Durability :
- 500 Cycles
- Color :
- Gray
- Voltage - Rated DC :
- 500V
- Orientation :
- Straight
- Contact Resistance :
- 1MOhm
- Pbfree Code :
- yes
- Reliability :
- COMMERCIAL
- Operating Temperature :
- -40°C~125°C
- Mounting Option 1 :
- DETENT
- Termination Style :
- Screw
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Free :
- Lead Free
- REACH SVHC :
- No SVHC
- Connector Type :
- INSERT
- MIL Conformance :
- No
- Insulation Resistance :
- 10000000000Ohm
- Number of Positions :
- 6+Ground
- Operating Supply Voltage :
- 600V
- RoHS Status :
- ROHS3 Compliant
- Contact Material :
- COPPER ALLOY
- Body Breadth :
- 1.339 inch
- Body/Shell Style :
- PLUG
- Series :
- Han® E
- Contact Finish :
- Silver
- Max Current Rating :
- 16A
- Mounting Type :
- CABLE
- Number of Conductors :
- ONE
- Length :
- 51mm
- Current Rating :
- 16A
- Flammability Rating :
- UL94 V-0
- Ratings :
- IP65
- Housing Material :
- Polycarbonate (PC)
- Size :
- 6B
- Gender :
- FEMALE
- Mounting Option 2 :
- LOCKING
- Depth :
- 34.6mm
- DIN Conformance :
- No
- Contact Style :
- RND PIN-SKT
- Test Current :
- 16A
- Mixed Contacts :
- yes
- Number of Rows :
- 2
- IEC Conformance :
- No
- Total Number of Contacts :
- 6
- Board Mounting Option :
- Mounting Flange
- Factory Lead Time :
- 5 Weeks
- Datasheets
- 09330062701
