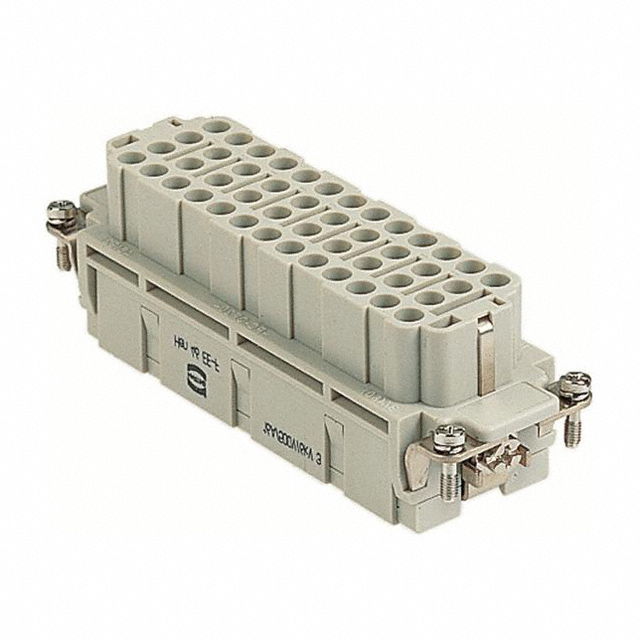

09320463101
Or copy the link below:
- Mfr.Part #
- 09320463101
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- INSERT FEMALE 46POS+1GND CRIMP
- Stock
- 5
- In Stock ：
- 5
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Inserts, Modules
- Size :
- 24b
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- ECCN Code :
- EAR99
- Packaging :
- Bulk
- Factory Lead Time :
- 4 Weeks
- Number of Positions :
- 46+Ground
- Contact Material :
- Copper
- Pbfree Code :
- yes
- Voltage - Rated AC :
- 500V
- Gender :
- FEMALE
- Depth :
- 36.2mm
- Number of Rows :
- 4
- Housing Material :
- Polycarbonate (PC)
- Mixed Contacts :
- yes
- Length :
- 111mm
- HTS Code :
- 8536.69.80.00
- Material Flammability Rating :
- UL94 V-0
- Number of Conductors :
- ONE
- Number of Contacts :
- 46
- Body/Shell Style :
- PLUG
- RoHS Status :
- ROHS3 Compliant
- Insulation Material :
- Polycarbonate
- Contact Resistance :
- 1MOhm
- Flammability Rating :
- UL94 V-0
- Additional Feature :
- ROHS COMPL. and M3X10 SCREWS
- Durability :
- 500 Cycles
- Contact Finish - Mating :
- NOT SPECIFIED
- Option :
- GENERAL PURPOSE
- Reliability :
- COMMERCIAL
- DIN Conformance :
- No
- Orientation :
- Straight
- Mounting Option 1 :
- DETENT
- Contact Plating :
- Silver
- Working Voltage :
- 500V
- Body Breadth :
- 1.339 inch
- MIL Conformance :
- No
- Max Current Rating :
- 16A
- Dielectric Withstanding Voltage :
- 6000VAC V
- Current Rating :
- 16A
- Voltage - Rated DC :
- 500V
- Board Mounting Option :
- Mounting Flange
- Termination Style :
- Crimp
- Connector Type :
- Insert without Contacts
- Mounting Option 2 :
- LOCKING
- Series :
- Han® EE
- IEC Conformance :
- No
- Color :
- Gray
- Contact Type :
- Han®
- Reference Standard :
- UL, CSA
- Mounting Type :
- CABLE
- Operating Temperature :
- -40°C~125°C
- Insulation Resistance :
- 1.01kOhm
- REACH SVHC :
- No SVHC
- Datasheets
- 09320463101
09320463101 Documents
09320463101 datasheet pdf and Heavy Duty Connectors - Inserts, Modules product details from HARTING stock available at Xinshop
