Mfr.Part #
09320463001
Manufacturer
HARTING
Package / Case
Datasheet
Download
Description

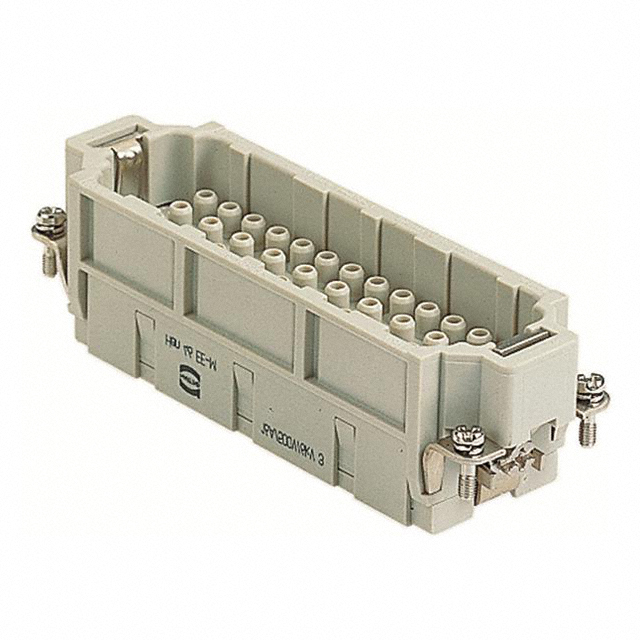

INSERT MALE 46POS+1GND CRIMP
Stock
4
In Stock :
4

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
HARTING
Product Category :
Heavy Duty Connector Inserts, Modules
Factory Lead Time :
4 Weeks
REACH SVHC :
No SVHC
Connector Type :
Insert without Contacts
MIL Conformance :
No
Gender :
Male
Termination Style :
Crimp
Body/Shell Style :
Receptacle
Wire Gauge (Min) :
20 AWG
ECCN Code :
EAR99
Number of Pins :
46
Current Rating :
20A
Housing Material :
Polycarbonate (PC)
Mounting Type :
CABLE
Body Breadth :
1.339 inch
Mounting Option 2 :
LOCKING
Durability :
500 Cycles
IEC Conformance :
No
Reliability :
COMMERCIAL
DIN Conformance :
No
Operating Temperature :
-40°C~125°C
Voltage - Rated AC :
500V
Additional Feature :
RoHS Compliant
Reference Standard :
UL, CSA
Max Current Rating :
16A
Insulation Material :
Polycarbonate
Color :
Gray
Wire Gauge (Max) :
12 AWG
Contact Plating :
Silver
Number of Positions :
46+Ground
HTS Code :
8536.69.80.00
Contact Finish - Mating :
NOT SPECIFIED
Pbfree Code :
yes
RoHS Status :
ROHS3 Compliant
Size :
24b
Insulation Resistance :
1.01kOhm
Orientation :
Straight
Number of Rows :
4
Flammability Rating :
UL94 V-0
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Material Flammability Rating :
UL94 V-0
Packaging :
Bulk
Working Voltage :
500V
Mounting Option 1 :
M3
Voltage - Rated DC :
500V
Mixed Contacts :
yes
Series :
Han® EE
Contact Type :
Han®
Length :
111mm
Total Number of Contacts :
46
Number of Conductors :
ONE
Contact Material :
Copper
Depth :
33.3mm
Contact Resistance :
1MOhm
Option :
GENERAL PURPOSE
