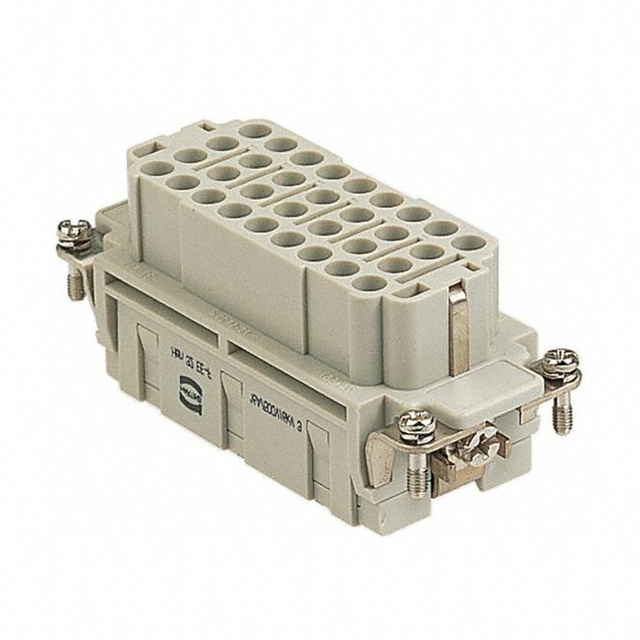

09320323101
Or copy the link below:
- Mfr.Part #
- 09320323101
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- INSERT FEMALE 32POS+1GND CRIMP
- Stock
- 9,821
- In Stock ：
- 9,821
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Inserts, Modules
- DIN Conformance :
- No
- Flammability Rating :
- UL94 V-0
- ECCN Code :
- EAR99
- Size :
- 16b
- Insulation Resistance :
- 1.01kOhm
- Number of Positions :
- 32+Ground
- Insulation Material :
- Polycarbonate
- Housing Material :
- Polycarbonate (PC)
- Wire Gauge (Max) :
- 12 AWG
- Depth :
- 36.2mm
- Current Rating :
- 16A
- Length :
- 84.5mm
- Pbfree Code :
- yes
- Gender :
- FEMALE
- HTS Code :
- 8536.69.80.00
- Orientation :
- Straight
- IEC Conformance :
- No
- Connector Type :
- Insert without Contacts
- MIL Conformance :
- No
- REACH SVHC :
- No SVHC
- Contact Type :
- Han®
- Termination Style :
- Crimp
- Working Voltage :
- 500V
- Option :
- GENERAL PURPOSE
- Packaging :
- Bulk
- Voltage - Rated DC :
- 500V
- Number of Rows :
- 4
- Max Current Rating :
- 16A
- RoHS Status :
- ROHS3 Compliant
- Color :
- Gray
- Material Flammability Rating :
- UL94 V-0
- Voltage - Rated AC :
- 500V
- Contact Finish - Mating :
- NOT SPECIFIED
- Series :
- Han® EE
- Contact Plating :
- Silver
- Wire Gauge (Min) :
- 20 AWG
- Operating Temperature :
- -40°C~125°C
- Number of Contacts :
- 32
- Contact Material :
- NOT SPECIFIED
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 4 Weeks
- Datasheets
- 09320323101
