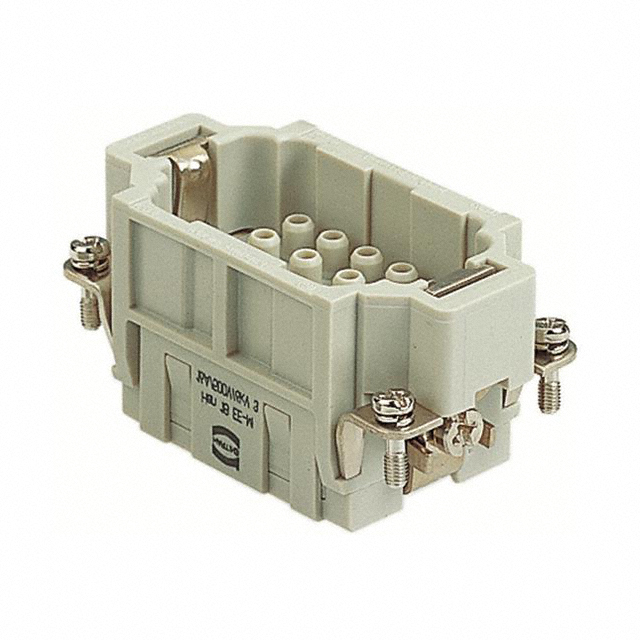

09320183001
Or copy the link below:
- Mfr.Part #
- 09320183001
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- INSERT MALE 18POS+1GND CRIMP
- Stock
- 3
- In Stock ：
- 3
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Inserts, Modules
- Number of Positions :
- 18+Ground
- Insulation Resistance :
- 1.01kOhm
- Voltage - Rated DC :
- 500V
- Housing Material :
- Polycarbonate (PC)
- Factory Lead Time :
- 4 Weeks
- Color :
- Gray
- Depth :
- 33.3mm
- Option :
- GENERAL PURPOSE
- ECCN Code :
- EAR99
- Orientation :
- Straight
- Termination Style :
- Crimp
- Connector Type :
- Insert without Contacts
- Size :
- 10b
- Packaging :
- Bulk
- Insulation Material :
- Polycarbonate
- Voltage - Rated AC :
- 500V
- Contact Type :
- Han®
- Flammability Rating :
- UL94 V-0
- HTS Code :
- 8536.69.80.00
- Operating Temperature :
- -40°C~125°C
- IEC Conformance :
- No
- Gender :
- Male
- DIN Conformance :
- No
- Material Flammability Rating :
- UL94 V-0
- Length :
- 57mm
- Current Rating :
- 16A
- Contact Material :
- Copper
- Working Voltage :
- 500V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- ROHS3 Compliant
- Contact Plating :
- Silver
- Pbfree Code :
- yes
- REACH SVHC :
- No SVHC
- Series :
- Han® EE
- Number of Rows :
- 4
- MIL Conformance :
- No
- Contact Finish - Mating :
- NOT SPECIFIED
- Number of Pins :
- 18
- Datasheets
- 09320183001
09320183001 datasheet pdf and Heavy Duty Connectors - Inserts, Modules product details from HARTING stock available at Xinshop
