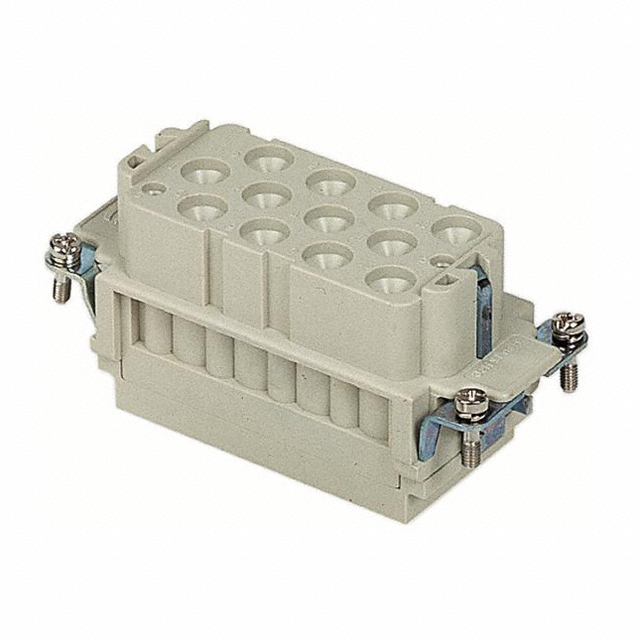

09320123101
Or copy the link below:
- Mfr.Part #
- 09320123101
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- INSERT FEMALE 12+2POS+1GND CRIMP
- Stock
- 2
- In Stock ：
- 2
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Inserts, Modules
- Voltage - Rated :
- 690V
- Reference Standard :
- UL, CSA
- Housing Material :
- Polycarbonate (PC)
- Insulation Resistance :
- 10000000000Ohm
- Reliability :
- COMMERCIAL
- Mounting Type :
- CABLE
- Operating Temperature :
- -40°C~125°C
- Rated Current (Signal) :
- 10A
- Body/Shell Style :
- PLUG
- RoHS Status :
- ROHS3 Compliant
- MIL Conformance :
- No
- Number of Contacts :
- 12
- Gender :
- FEMALE
- Series :
- Han-Com®
- Number of Positions :
- 12+2+Ground
- Mounting Option 1 :
- M3
- Factory Lead Time :
- 4 Weeks
- Contact Material :
- NOT SPECIFIED
- Durability :
- 500 Cycles
- Contact Finish - Mating :
- NOT SPECIFIED
- Orientation :
- Straight
- Flammability Rating :
- UL94 V-0
- Pbfree Code :
- yes
- Termination Style :
- Crimp
- DIN Conformance :
- No
- Additional Feature :
- RoHS Compliant
- Size :
- 16b
- Number of Rows :
- 3
- Number of Conductors :
- ONE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mixed Contacts :
- yes
- Contact Resistance :
- 200000mOhm
- Voltage - Rated DC :
- 690V
- Connector Type :
- Insert without Contacts
- ECCN Code :
- EAR99
- Contact Type :
- Han® C, Han® D
- Color :
- Gray
- REACH SVHC :
- No SVHC
- IEC Conformance :
- No
- Contact Plating :
- Gold, Silver
- Length :
- 84.5mm
- Option :
- GENERAL PURPOSE
- Depth :
- 41.5mm
- Packaging :
- Bulk
- Current Rating :
- 40A
- Material Flammability Rating :
- UL94 V-0
- Datasheets
- 09320123101
