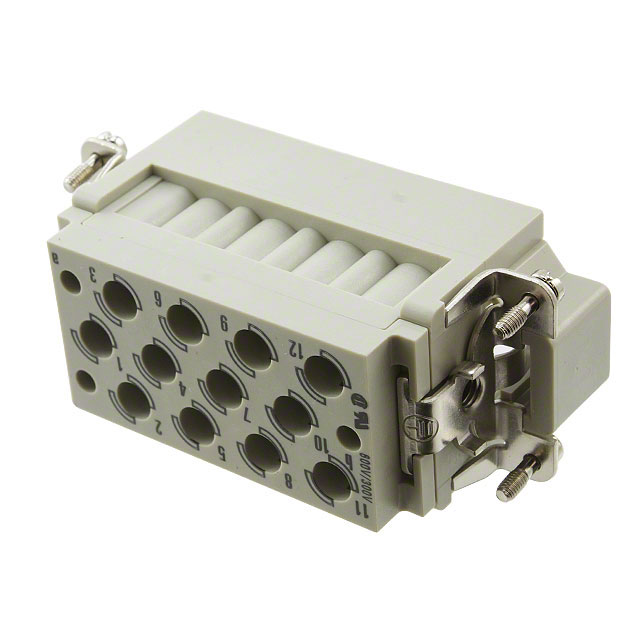

09320123001
Or copy the link below:
- Mfr.Part #
- 09320123001
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- INSERT MALE 12+2POS+1GND CRIMP
- Stock
- 4
- In Stock ：
- 4
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Inserts, Modules
- Number of Positions :
- 12+2+Ground
- Gender :
- Male
- Series :
- Han-Com®
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 4 Weeks
- Pbfree Code :
- yes
- Voltage - Rated :
- 690V
- Termination Style :
- Crimp
- RoHS Status :
- ROHS3 Compliant
- ECCN Code :
- EAR99
- Packaging :
- Bulk
- Current Rating :
- 40A
- Number of Contacts :
- 12
- Depth :
- 39.6mm
- DIN Conformance :
- No
- Connector Type :
- Insert without Contacts
- Contact Type :
- Han® C, Han® D
- Orientation :
- Straight
- Operating Temperature :
- -40°C~125°C
- Length :
- 84.5mm
- Contact Finish - Mating :
- NOT SPECIFIED
- Material Flammability Rating :
- UL94 V-0
- Housing Material :
- Polycarbonate (PC)
- Size :
- 16b
- IEC Conformance :
- No
- Option :
- GENERAL PURPOSE
- MIL Conformance :
- No
- Flammability Rating :
- UL94 V-0
- Number of Rows :
- 3
- Contact Material :
- NOT SPECIFIED
- Voltage - Rated DC :
- 690V
- Contact Plating :
- Gold, Silver
- Color :
- Gray
- Datasheets
- 09320123001
09320123001 Documents
09320123001 datasheet pdf and Heavy Duty Connectors - Inserts, Modules product details from HARTING stock available at Xinshop
