09320103001
- Mfr.Part #
- 09320103001
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description

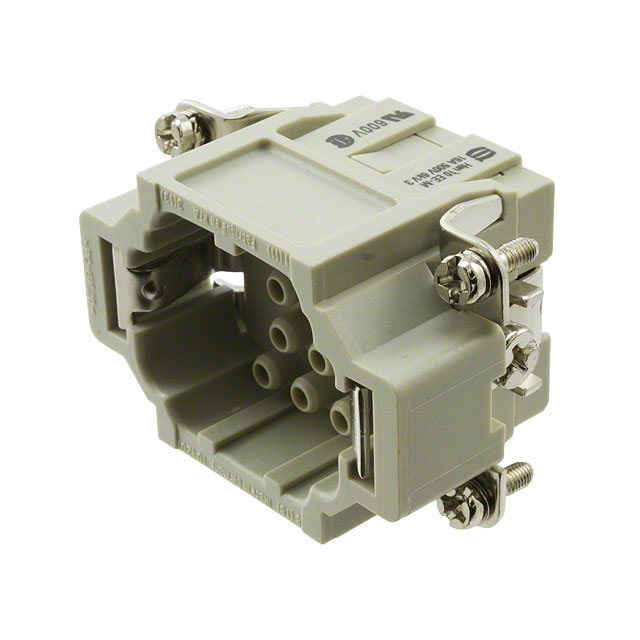

- INSERT MALE 10POS+1GND CRIMP
- Stock
- 10
- In Stock :
- 10
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Inserts, Modules
- Connector Type :
- Insert without Contacts
- Additional Feature :
- RoHS Compliant
- Contact Type :
- Han®
- IEC Conformance :
- No
- Durability :
- 500 Cycles
- Gender :
- Male
- ECCN Code :
- EAR99
- Pbfree Code :
- yes
- Insulation Resistance :
- 10GOhm
- Body Breadth :
- 1.339 inch
- Number of Contacts :
- 10
- Flammability Rating :
- UL94 V-0
- Wire Gauge (Max) :
- 12 AWG
- Orientation :
- Straight
- Max Current Rating :
- 16A
- HTS Code :
- 8536.69.80.00
- Contact Plating :
- Silver
- Color :
- Gray
- RoHS Status :
- ROHS3 Compliant
- Voltage - Rated DC :
- 500V
- Insulation Material :
- Polycarbonate
- DIN Conformance :
- No
- Housing Material :
- Polycarbonate (PC)
- Termination Style :
- Crimp
- Packaging :
- Bulk
- REACH SVHC :
- No SVHC
- Mixed Contacts :
- yes
- Option :
- GENERAL PURPOSE
- Reference Standard :
- UL, CSA
- Contact Material :
- Copper
- MIL Conformance :
- No
- Working Voltage :
- 500V
- Factory Lead Time :
- 4 Weeks
- Body/Shell Style :
- Receptacle
- Number of Conductors :
- ONE
- Material Flammability Rating :
- UL94 V-0
- Length :
- 51mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire Gauge (Min) :
- 20 AWG
- Voltage - Rated AC :
- 500V
- Mounting Option 1 :
- LOCKING
- Series :
- Han® EE
- Contact Finish - Mating :
- NOT SPECIFIED
- Number of Rows :
- 4
- Number of Positions :
- 10+Ground
- Depth :
- 33.3mm
- Current Rating :
- 16A
- Size :
- 6B
- Mounting Type :
- CABLE
- Reliability :
- COMMERCIAL
- Operating Temperature :
- -40°C~125°C
- Contact Resistance :
- 1MOhm
