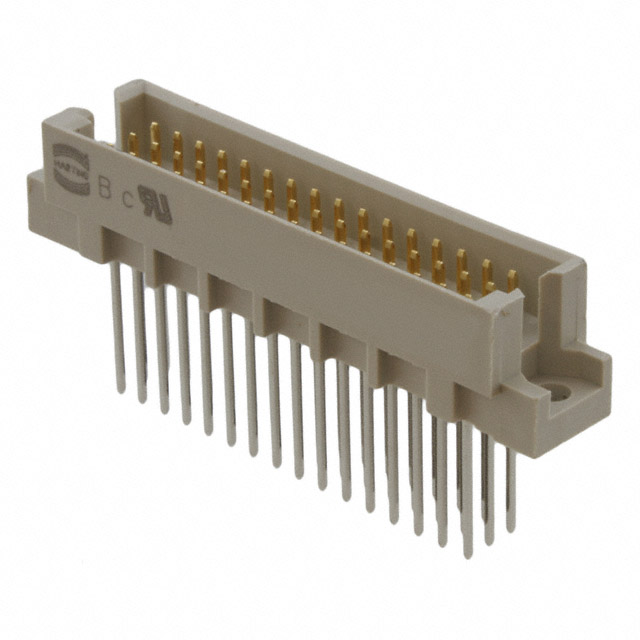

09281486907

Manufacturer :

HARTING

Product Category :

DIN 41612

Contact Finish Thickness :

Flash

Mounting Type :

Panel Mount, Through Hole

Working Voltage :

250V

Depth :

11.1mm

Contact Finish :

Gold

Flammability Rating :

UL94 V-0

IEC Conformance :

No

Level, Class :

2

Packaging :

Bulk

Pbfree Code :

yes

Total Number of Contacts :

48

Lead Free :

Lead Free

Mating Contact Row Spacing :

0.1 inch

Rated Current (Signal) :

2A

Insulation Resistance :

1000000000000Ohm

Series :

DIN 41612

Contact Resistance :

15mOhm

Material Flammability Rating :

UL94 V-0

Number of Rows :

3

REACH SVHC :

No SVHC

Dielectric Withstanding Voltage :

1000VAC V

Current Rating :

2A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions :

48

Reference Standard :

VDE,CSA

Connector Type :

Header, Male Pins

DIN Conformance :

yes

Reliability :

COMMERCIAL

Gender :

Male

Lead Pitch :

2.54mm

Number of Positions Loaded :

All

Insertion Force-Max :

1.5568 N

Length :

55mm

Orientation :

Straight

Material - Insulation :

Thermoplastic, Glass Filled

Lead Length :

13mm

Filter Feature :

No

Option :

GENERAL PURPOSE

Voltage - Rated DC :

250V

Name of Rows Loaded :

A,B,C

MIL Conformance :

No

Max Operating Temperature :

125°C

UL Flammability Code :

94V-0

Min Operating Temperature :

-65°C

PCB Contact Pattern :

RECTANGULAR

Mount :

Panel, Through Hole

Termination :

Wire Wrap

Contact Material :

Copper

Factory Lead Time :

7 Weeks

JESD-609 Code :

e4

Max Current Rating :

2A

Style :

2R

Polarization Key :

POLARIZED HOUSING

Withdrawl Force-Min :

1.5568 N

ECCN Code :

EAR99

Pitch :

0.100 2.54mm

Mixed Contacts :

No

Number Of PCB Rows :

3

RoHS Status :

ROHS3 Compliant
