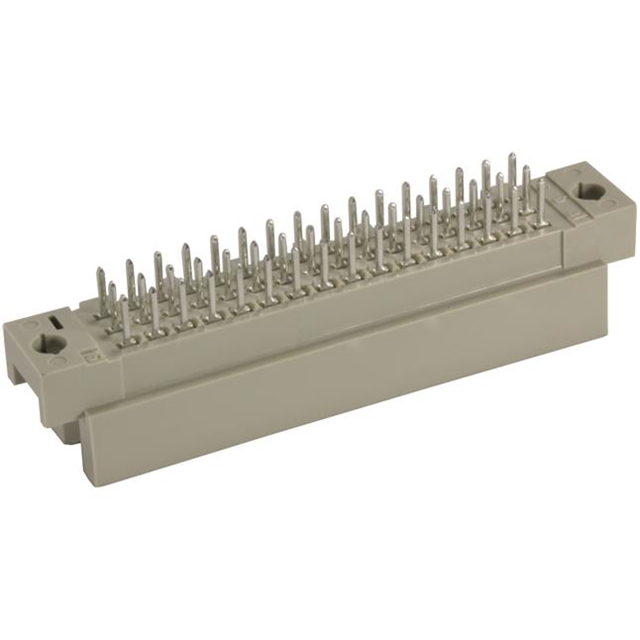

09281322902

Manufacturer :

HARTING

Product Category :

DIN 41612

Total Number of Contacts :

32

Material - Insulation :

Polybutylene Terephthalate (PBT), Glass Filled

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Name of Rows Loaded :

A,C

Mounting Type :

Through Hole

Packaging :

Bulk

Level, Class :

1

MIL Conformance :

No

Connector Type :

Header, Male Pins

UL Flammability Code :

94V-0

Number of Positions Loaded :

32

Material Flammability Rating :

UL94 V-0

Length - Termination :

0.098 inch

Reference Standard :

VDE,CSA

Reliability :

COMMERCIAL

Contact Material :

NOT SPECIFIED

PCB Contact Pattern :

RECTANGULAR

Filter Feature :

No

Option :

GENERAL PURPOSE

Pitch :

0.100 2.54mm

Operating Temperature :

-55°C~125°C

DIN Conformance :

yes

Contact Finish Thickness :

Flash

Number Of PCB Rows :

3

JESD-609 Code :

e4

Mixed Contacts :

No

Factory Lead Time :

7 Weeks

Current Rating (Amps) :

2A

Number of Positions :

48

Contact Finish :

Gold-Palladium

Body Depth :

0.457 inch

Pbfree Code :

yes

Style :

2R

Termination :

Solder

Polarization Key :

POLARIZED HOUSING

RoHS Status :

ROHS3 Compliant

Number of Rows :

3

PCB Contact Row Spacing :

2.54 mm

IEC Conformance :

No

Series :

DIN 41612
