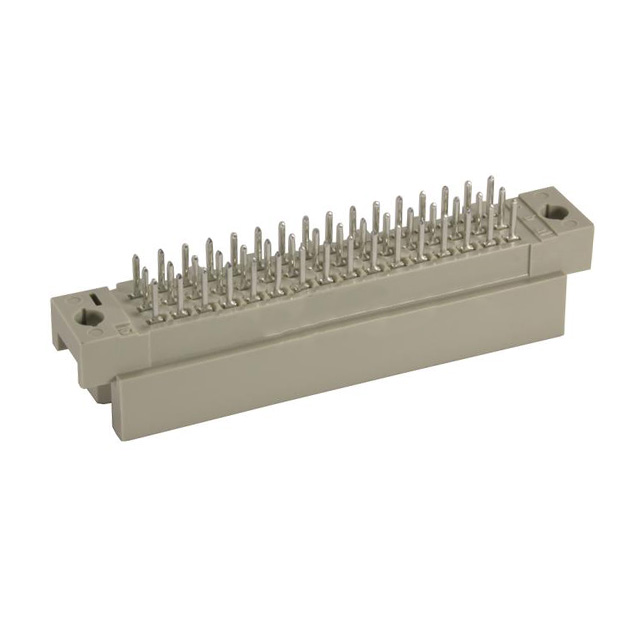

09281486902

Manufacturer :

HARTING

Product Category :

DIN 41612

Number of Rows :

3

Number Of PCB Rows :

3

Pitch :

0.100 2.54mm

Current Rating :

2A

IEC Conformance :

No

Level, Class :

2

Number of Positions Loaded :

All

Max Current Rating :

2A

Mixed Contacts :

No

Style :

2R

Length :

55mm

Packaging :

Bulk

Termination :

Solder

Reliability :

COMMERCIAL

Mounting Type :

Through Hole

Depth :

11.1mm

Insulation Resistance :

1000000000000Ohm

Connector Type :

Header, Male Pins

Dielectric Withstanding Voltage :

1000VAC V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

UL Flammability Code :

94V-0

Insertion Force-Max :

1.5568 N

Pbfree Code :

yes

JESD-609 Code :

e4

DIN Conformance :

yes

Name of Rows Loaded :

A,B,C

Number of Positions :

48

Total Number of Contacts :

48

Rated Current (Signal) :

2A

Orientation :

Straight

Filter Feature :

No

Series :

DIN 41612

Reference Standard :

VDE,CSA

Contact Finish Thickness :

Flash

Factory Lead Time :

7 Weeks

Operating Temperature :

-55°C~125°C

Withdrawl Force-Min :

1.5568 N

MIL Conformance :

No

RoHS Status :

ROHS3 Compliant

Contact Finish :

Gold-Palladium

Mating Contact Row Spacing :

0.1 inch

Material Flammability Rating :

UL94 V-0

Option :

GENERAL PURPOSE

PCB Contact Pattern :

RECTANGULAR

Polarization Key :

POLARIZED HOUSING

Contact Plating :

Gold

Contact Material :

NOT SPECIFIED

Material - Insulation :

Polybutylene Terephthalate (PBT), Glass Filled

Contact Resistance :

15mOhm
