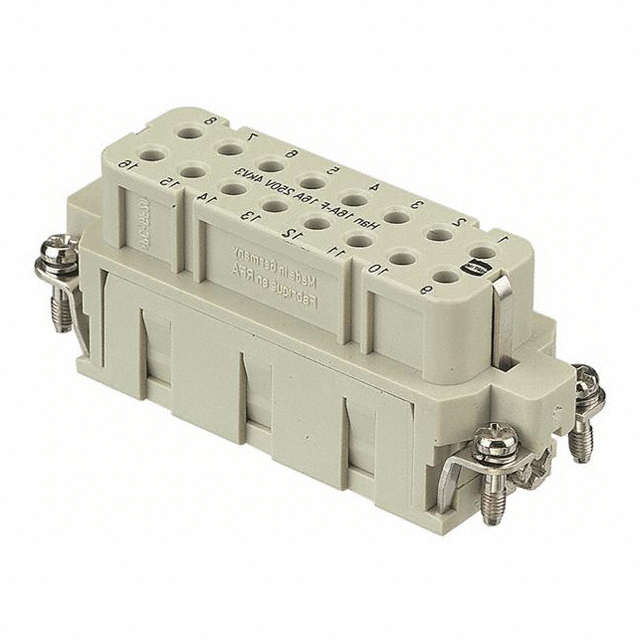

09200163101
Or copy the link below:
- Mfr.Part #
- 09200163101
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- INSERT FEMALE 16POS+1GND CRIMP
- Stock
- 6
- In Stock ：
- 6
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Inserts, Modules
- Number of Pins :
- 16
- Number of Positions :
- 16+Ground
- Operating Temperature :
- -40°C~125°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector Type :
- Insert without Contacts
- MIL Conformance :
- No
- RoHS Status :
- ROHS3 Compliant
- ECCN Code :
- EAR99
- HTS Code :
- 8536.69.40.30
- Test Current :
- 10A
- Current Rating :
- 16A
- Pbfree Code :
- yes
- Material Flammability Rating :
- UL94 V-0
- Color :
- Gray
- Housing Material :
- Polycarbonate (PC)
- Series :
- Han® A
- Factory Lead Time :
- 4 Weeks
- Gender :
- FEMALE
- Contact Type :
- Han®
- Option :
- GENERAL PURPOSE
- Contact Material :
- NOT SPECIFIED
- Packaging :
- Bulk
- Flammability Rating :
- UL94 V-0
- Number of Rows :
- 2
- Voltage - Rated :
- 600V
- Contact Finish - Mating :
- NOT SPECIFIED
- Termination Style :
- Crimp
- DIN Conformance :
- No
- IEC Conformance :
- No
- Datasheets
- 09200163101
09200163101 Documents
09200163101 datasheet pdf and Heavy Duty Connectors - Inserts, Modules product details from HARTING stock available at Xinshop
