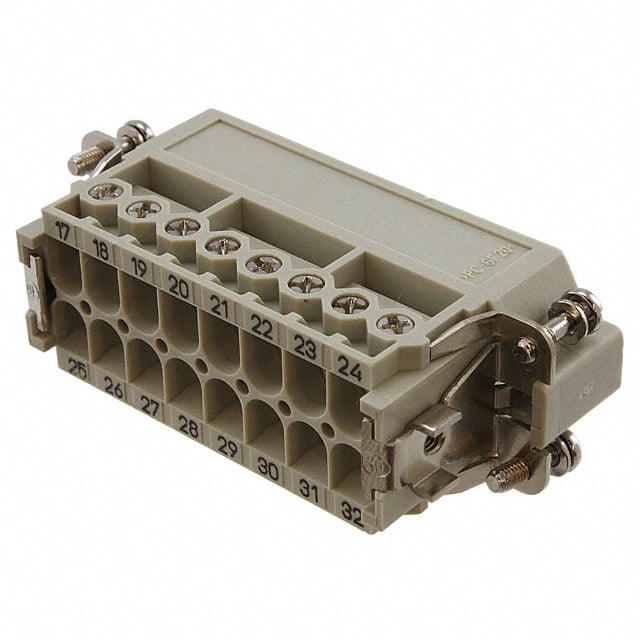

09200162613

Manufacturer :

HARTING

Product Category :

Heavy Duty Connector Inserts, Modules

Material Flammability Rating :

UL94 V-0

Color :

Gray

Length :

72.4mm

HTS Code :

8536.69.40.30

Voltage - Rated :

600V

Number of Contacts :

32

Option :

GENERAL PURPOSE

Voltage - Rated DC :

250V

Test Current :

10A

Depth :

22.8mm

Termination Style :

Screw

Connector Type :

INSERT

REACH SVHC :

No SVHC

Max Current Rating :

16A

Current Rating :

16A

DIN Conformance :

No

Orientation :

Straight

Number of Rows :

2

Material :

Polycarbonate

Packaging :

Bulk

RoHS Status :

ROHS3 Compliant

Flammability Rating :

UL94 V-0

Max Voltage Rating (AC) :

250V

Pbfree Code :

yes

IEC Conformance :

No

Housing Material :

Polycarbonate (PC)

ECCN Code :

EAR99

Number of Positions :

16+Ground

Series :

Han® A

MIL Conformance :

No

Factory Lead Time :

4 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Material :

COPPER ALLOY

Gender :

Male

Lead Free :

Lead Free

Contact Finish :

Silver

Number of Pins :

16

Size :

32A

Operating Temperature :

-40°C~125°C
