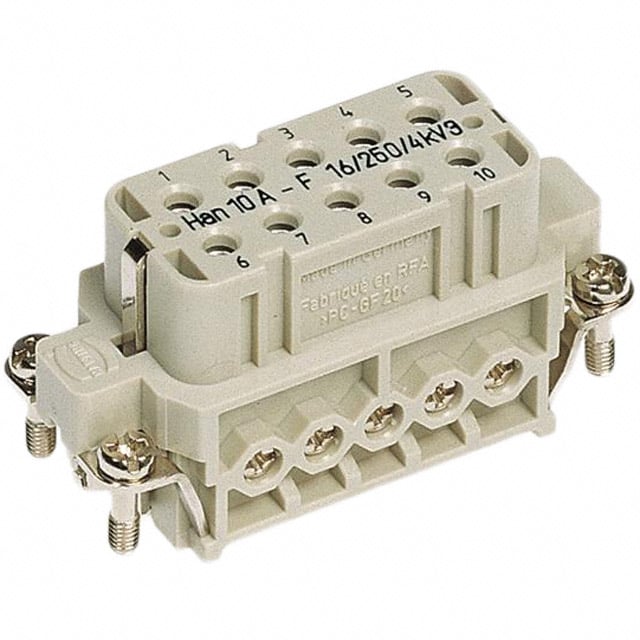

09200102812

Manufacturer :

HARTING

Product Category :

Heavy Duty Connector Inserts, Modules

Series :

Han® A

Dielectric Withstanding Voltage :

4000VAC V

Voltage - Rated AC :

250V

Mixed Contacts :

yes

Mount :

Panel

Reliability :

COMMERCIAL

Number of Poles :

10

DIN Conformance :

No

Max Current Rating :

16A

Voltage - Rated DC :

230V

Wire Gauge (Min) :

18 AWG

Durability :

500 Cycles

Current Rating (Amps) :

16A

ECCN Code :

EAR99

Contact Resistance :

1MOhm

Connector Type :

INSERT

Total Number of Contacts :

10

Ratings :

IP65

Color :

Gray

Contact Finish - Mating :

NOT SPECIFIED

Housing Material :

Polycarbonate (PC)

Factory Lead Time :

4 Weeks

Depth :

30mm

Operating Temperature :

-40°C~125°C

Working Voltage :

230V

Option :

GENERAL PURPOSE

MIL Conformance :

No

Length :

56mm

RoHS Status :

ROHS3 Compliant

Wire Gauge (Max) :

14 AWG

Number of Rows :

2

Lead Free :

Lead Free

Body/Shell Style :

PLUG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current Rating :

10A

Material Flammability Rating :

UL94 V-0

Packaging :

Bulk

IEC Conformance :

No

Body Breadth :

0.898 inch

Flammability Rating :

UL94 V-0

Number of Conductors :

ONE

Reference Standard :

UL, CSA

Termination Style :

Screw

Wire/Cable Gauge :

14 AWG

REACH SVHC :

No SVHC

Pbfree Code :

yes

Contact Plating :

Silver

Contact Material :

COPPER ALLOY

Number of Positions :

10+Ground

Gender :

FEMALE

Orientation :

Straight

Test Current :

10A

HTS Code :

8536.69.40.30

Material :

Thermoplastic

Contact Style :

RND PIN-SKT
