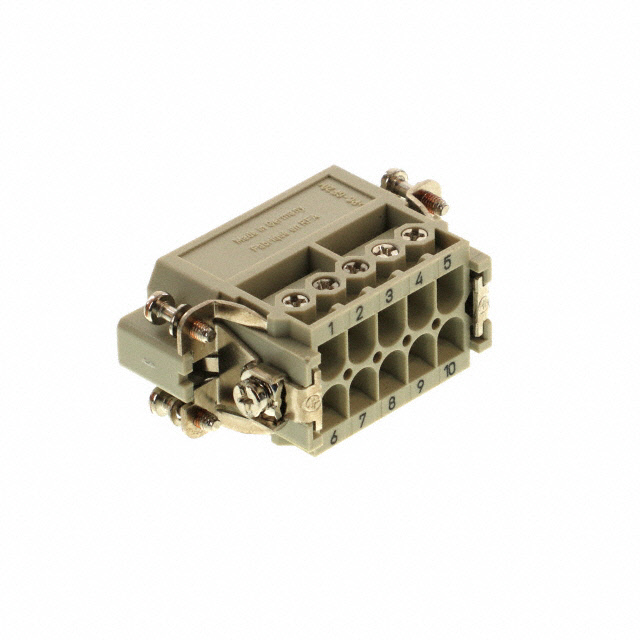

09200102612

Manufacturer :

HARTING

Product Category :

Heavy Duty Connector Inserts, Modules

Ratings :

IP65

Max Current Rating :

16A

Reliability :

COMMERCIAL

Voltage - Rated DC :

230V

Current Rating :

10A

Number of Poles :

10

Connector Type :

INSERT

Mount :

Panel

Total Number of Contacts :

10

Material Flammability Rating :

UL94 V-0

Flammability Rating :

UL94 V-0

Orientation :

Straight

Gender :

Male

HTS Code :

8536.69.40.30

Number of Conductors :

ONE

Termination Style :

Screw

Depth :

33mm

Body/Shell Style :

Receptacle

ECCN Code :

EAR99

Mixed Contacts :

yes

Series :

Han® A

Current Rating (Amps) :

16A

Contact Finish :

Silver

RoHS Status :

ROHS3 Compliant

Housing Material :

Polycarbonate (PC)

Number of Positions :

10+Ground

Working Voltage :

230V

Factory Lead Time :

4 Weeks

Number of Rows :

2

Lead Free :

Lead Free

Contact Style :

RND PIN-SKT

Length :

56mm

Wire/Cable Gauge :

14 AWG

REACH SVHC :

No SVHC

Voltage - Rated AC :

250V

DIN Conformance :

No

Wire Gauge (Min) :

18 AWG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Material :

COPPER ALLOY

Packaging :

Bulk

IEC Conformance :

No

Test Current :

10A

Reference Standard :

UL, CSA

Color :

Gray

MIL Conformance :

No

Wire Gauge (Max) :

14 AWG

Option :

GENERAL PURPOSE

Pbfree Code :

yes

Body Breadth :

0.898 inch

Durability :

500 Cycles

Operating Temperature :

-40°C~125°C
