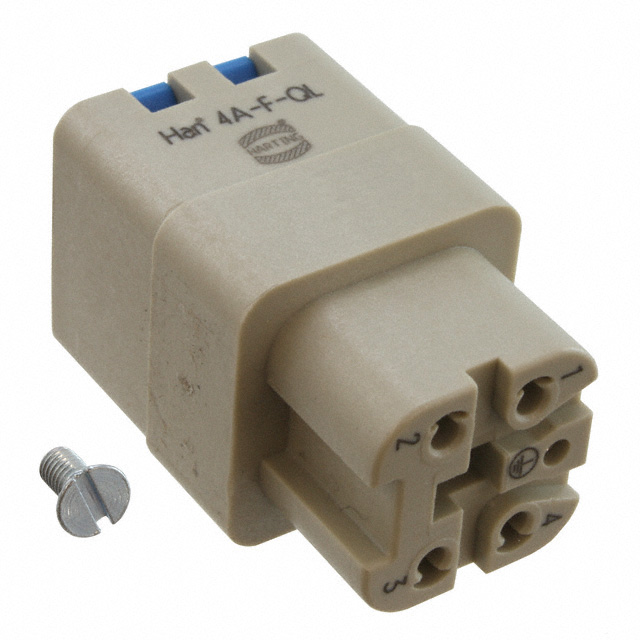

09200042733
Or copy the link below:
- Mfr.Part #
- 09200042733
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- INSERT FEMALE 4POS+1GND PUSH IN
- Stock
- 9
- In Stock ：
- 9
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Inserts, Modules
- Current Rating :
- 10A
- Voltage - Rated :
- 600V
- Contact Material :
- COPPER ALLOY
- Connector Type :
- INSERT
- Max Current Rating :
- 10A
- Depth :
- 36.5mm
- Operating Temperature :
- -40°C~125°C
- Number of Positions :
- 4+Ground
- Flammability Rating :
- UL94 V-0
- Number of Contacts :
- 4
- Length :
- 21mm
- Packaging :
- Bulk
- Number of Rows :
- 2
- Color :
- Gray
- Insulation Resistance :
- 10GOhm
- Gender :
- FEMALE
- Contact Plating :
- Silver
- MIL Conformance :
- No
- Series :
- Han® A
- Factory Lead Time :
- 5 Weeks
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- IEC Conformance :
- No
- Test Voltage :
- 1.5kV
- REACH SVHC :
- No SVHC
- Orientation :
- Straight
- Wire Gauge (Min) :
- 14 AWG
- DIN Conformance :
- No
- Wire Gauge (Max) :
- 20 AWG
- Size :
- 3A
- Contact Finish - Mating :
- NOT SPECIFIED
- Number of Pins :
- 5
- Termination Style :
- Push In with Lock
- Material Flammability Rating :
- UL94 V-0
- Option :
- GENERAL PURPOSE
- Housing Material :
- Polycarbonate (PC)
- Contact Resistance :
- 2MOhm
- Datasheets
- 09200042733
09200042733 Documents
09200042733 datasheet pdf and Heavy Duty Connectors - Inserts, Modules product details from HARTING stock available at Xinshop
