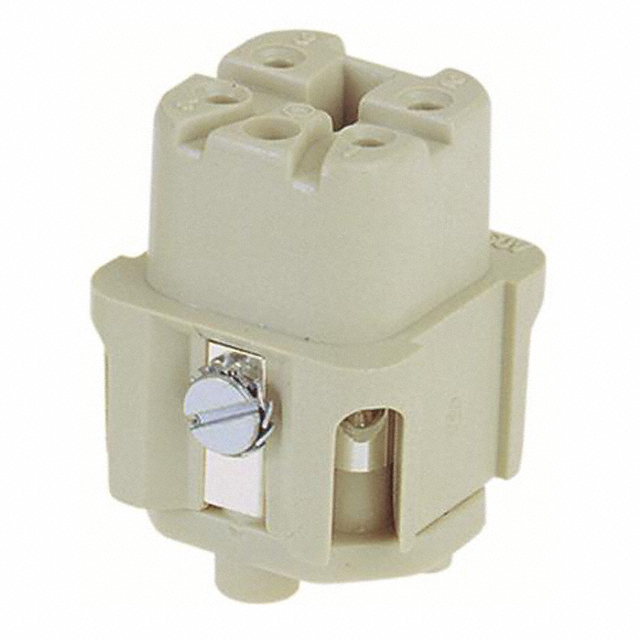

09200042711

Manufacturer :

HARTING

Product Category :

Heavy Duty Connector Inserts, Modules

Number of Poles :

4

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Factory Lead Time :

4 Weeks

Ratings :

IP65

Wire Gauge (Max) :

14 AWG

Series :

Han® A

Packaging :

Bulk

ECCN Code :

EAR99

Voltage - Rated DC :

230V

DIN Conformance :

No

Length :

21mm

Test Current :

10A

Contact Material :

COPPER ALLOY

Size :

3A

Current Rating :

4A

Wire Gauge (Min) :

18 AWG

Operating Temperature :

-40°C~125°C

Contact Resistance :

2MOhm

Housing Material :

Polycarbonate (PC)

Termination Style :

Screw

Number of Pins :

5

Color :

Gray

Pbfree Code :

yes

REACH SVHC :

No SVHC

Flammability Rating :

UL94 V-0

Material Flammability Rating :

UL94 V-0

Connector Type :

INSERT

Number of Rows :

2

Depth :

26.9mm

Voltage - Rated AC :

250V

Working Voltage :

230V

Gender :

FEMALE

IEC Conformance :

No

Option :

GENERAL PURPOSE

Contact Finish :

Silver

Orientation :

Straight

Test Voltage :

1.5kV

Max Current Rating :

10A

Insulation Resistance :

10GOhm

Wire/Cable Gauge :

14 AWG

MIL Conformance :

No

Number of Positions :

4+Ground

RoHS Status :

ROHS3 Compliant
