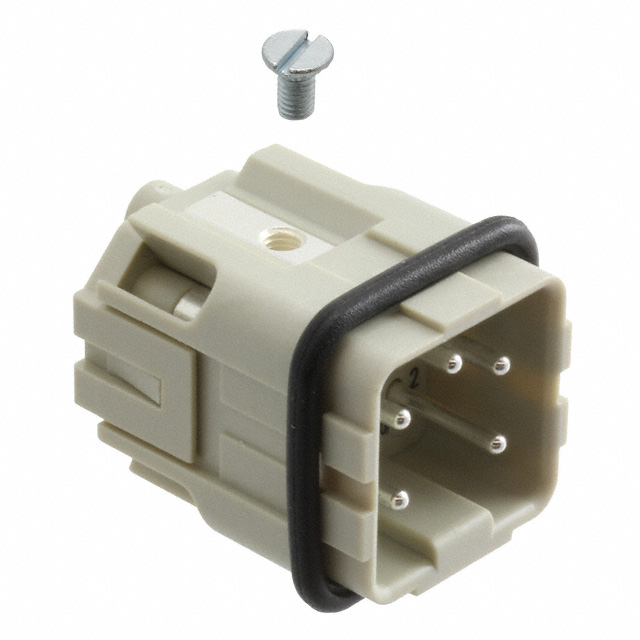

09200042611

Manufacturer :

HARTING

Product Category :

Heavy Duty Connector Inserts, Modules

Wire Gauge (Max) :

14 AWG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Material Flammability Rating :

UL94 V-0

Material :

Polycarbonate

Test Current :

10A

Number of Positions :

4+Ground

Termination Style :

Screw

Number of Poles :

4

Wire/Cable Gauge :

14 AWG

Gender :

Male

Lead Free :

Lead Free

Max Current Rating :

10A

Operating Supply Voltage :

600V

Housing Material :

Polycarbonate (PC)

Number of Rows :

2

Test Voltage :

1.5kV

Contact Material :

COPPER ALLOY

Pbfree Code :

yes

Option :

GENERAL PURPOSE

RoHS Status :

ROHS3 Compliant

Operating Temperature :

-40°C~125°C

Working Voltage :

230V

Contact Finish :

Silver

Packaging :

Bulk

Voltage - Rated AC :

250V

IEC Conformance :

No

DIN Conformance :

No

Wire Gauge (Min) :

18 AWG

Mount :

Panel

Factory Lead Time :

4 Weeks

Depth :

27.7mm

Flammability Rating :

UL94 V-0

Color :

Gray

Orientation :

Straight

MIL Conformance :

No

Voltage - Rated DC :

575mV

Size :

3A

Number of Pins :

5

Contact Resistance :

2MOhm

ECCN Code :

EAR99

Current Rating :

10A

Series :

Han® A

Ratings :

IP44, IP65

Connector Type :

INSERT

REACH SVHC :

No SVHC

Insulation Resistance :

10GOhm
