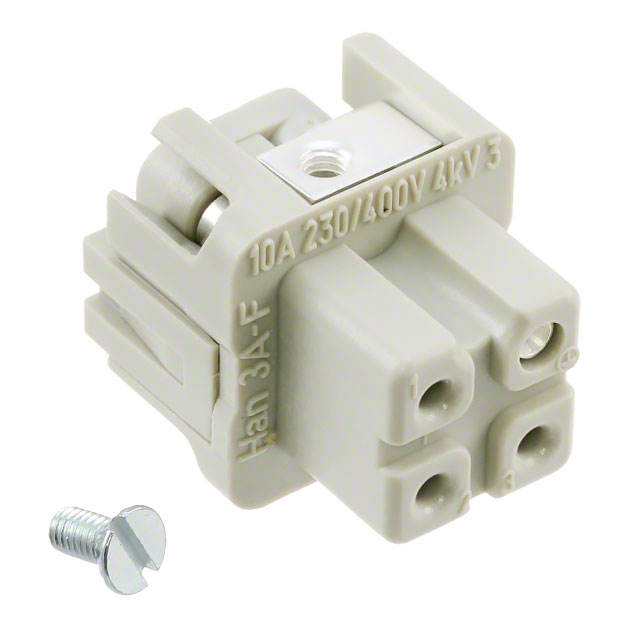

09200032711

Manufacturer :

HARTING

Product Category :

Heavy Duty Connector Inserts, Modules

RoHS Status :

ROHS3 Compliant

Option :

GENERAL PURPOSE

Connector Type :

INSERT

Flammability Rating :

UL94 V-0

Contact Resistance :

2MOhm

Test Voltage :

1.5kV

Number of Ports :

1

Wire Gauge (Max) :

14 AWG

MIL Conformance :

No

Operating Temperature :

-40°C~125°C

Number of Rows :

2

Number of Positions :

3+Ground

Series :

Han® A

ECCN Code :

EAR99

Number of Terminations :

3

Working Voltage :

230V

Gender :

FEMALE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Material Flammability Rating :

UL94 V-0

DIN Conformance :

No

Insulation Resistance :

10GOhm

Housing Material :

Polycarbonate (PC)

Factory Lead Time :

3 Weeks

Orientation :

RIGHT ANGLE

Max Current Rating :

10A

Current Rating :

3A

Test Current :

10A

Contact Material :

COPPER ALLOY

Depth :

26.2mm

Number of Poles :

3

Pbfree Code :

yes

Contact Finish :

Silver

Voltage - Rated DC :

230V

Wire Gauge (Min) :

18 AWG

Wire/Cable Gauge :

14 AWG

REACH SVHC :

No SVHC

Termination Style :

Screw

Number of Pins :

4

Ratings :

IP65

IEC Conformance :

No

Voltage - Rated AC :

250V

Packaging :

Bulk

Color :

Gray
