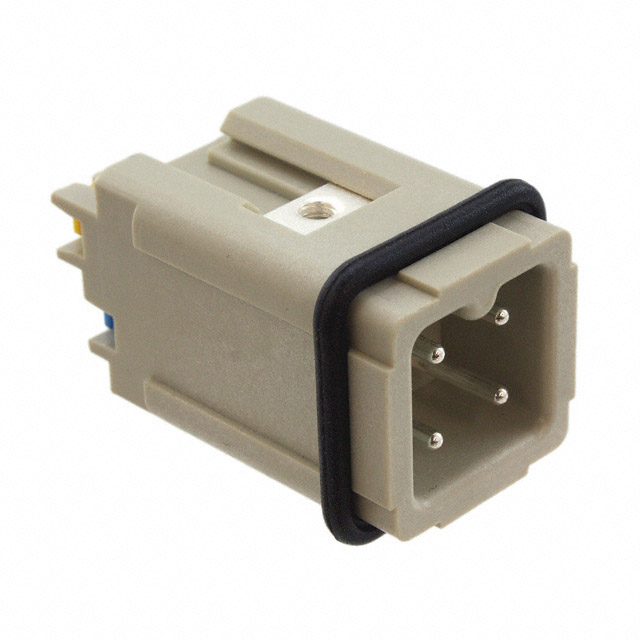

09200032633
Or copy the link below:
- Mfr.Part #
- 09200032633
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- INSERT MALE 3POS+1GND PUSH IN
- Stock
- 9
- In Stock ：
- 9
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Inserts, Modules
- Contact Material :
- COPPER ALLOY
- Packaging :
- Bulk
- Housing Material :
- Polycarbonate (PC)
- Number of Pins :
- 4
- Material Flammability Rating :
- UL94 V-0
- Wire Gauge (Max) :
- 14 AWG
- Operating Temperature :
- -40°C~125°C
- Series :
- Han® A
- Connector Type :
- INSERT
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Size :
- 3A
- Contact Finish - Mating :
- NOT SPECIFIED
- Number of Positions :
- 3+Ground
- Voltage - Rated :
- 600V
- Current Rating :
- 10A
- RoHS Status :
- ROHS3 Compliant
- Factory Lead Time :
- 9 Weeks
- Color :
- Gray
- Gender :
- Male
- Termination Style :
- Push In with Lock
- Wire Gauge (Min) :
- 20 AWG
- Contact Plating :
- Silver
- Flammability Rating :
- UL94 V-0
- Datasheets
- 09200032633
09200032633 datasheet pdf and Heavy Duty Connectors - Inserts, Modules product details from HARTING stock available at Xinshop
