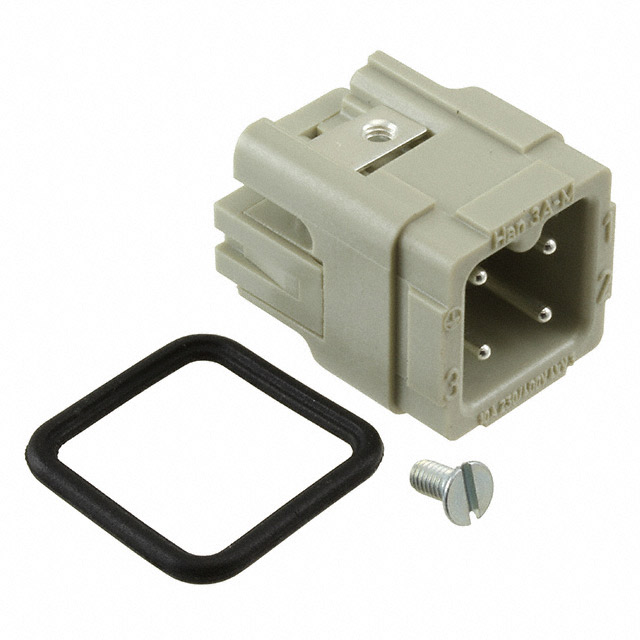

09200032611

Manufacturer :

HARTING

Product Category :

Heavy Duty Connector Inserts, Modules

Working Voltage :

230V

Option :

GENERAL PURPOSE

IEC Conformance :

No

Wire Gauge (Min) :

18 AWG

Gender :

Male

Current Rating :

10A

DIN Conformance :

No

Number of Positions :

3+Ground

Mount :

CABLE

Color :

Gray

Material Flammability Rating :

UL94 V-0

REACH SVHC :

No SVHC

Series :

Han® A

Material :

Polycarbonate

Termination Style :

Screw

Test Voltage :

1.5kV

Wire/Cable Gauge :

14 AWG

Number of Pins :

3

Test Current :

10A

Contact Resistance :

2MOhm

Operating Temperature :

-40°C~125°C

MIL Conformance :

No

Voltage - Rated AC :

250V

ECCN Code :

EAR99

Wire Gauge (Max) :

14 AWG

Insulation Resistance :

10GOhm

Contact Finish :

Silver

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Depth :

27mm

Number of Poles :

3

Max Current Rating :

3A

RoHS Status :

ROHS3 Compliant

Orientation :

Straight

Number of Rows :

2

Voltage - Rated DC :

230V

Contact Material :

COPPER ALLOY

Number of Ports :

1

Connector Type :

INSERT

Factory Lead Time :

4 Weeks

Packaging :

Bulk

Flammability Rating :

UL94 V-0

Ratings :

IP65

Housing Material :

Polycarbonate (PC)

Pbfree Code :

yes
