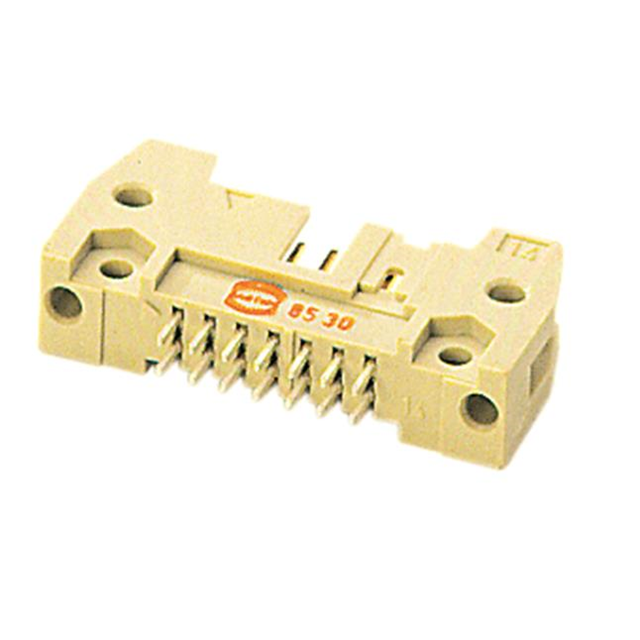

09195647904

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

PCB Contact Pattern :

RECTANGULAR

Contact Finish - Post :

Tin

Pitch - Mating :

0.100 2.54mm

Contact Material :

COPPER ALLOY

Termination :

Solder

Mount :

Through Hole

Body Breadth :

0.331 inch

Mixed Contacts :

No

Pbfree Code :

yes

Dielectric Withstanding Voltage :

1000VAC V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Factory Lead Time :

7 Weeks

Row Spacing - Mating :

0.100 (2.54mm)

Additional Feature :

STANDARDS: IEC 60603-13; DIN EN 60603-13

Insulation Resistance :

1000000000Ohm

Insulation Color :

Beige

Option :

GENERAL PURPOSE

Series :

SEK

Fastening Type :

Latch Lock/Eject Hooks, Long

IEC Conformance :

No

Number Of PCB Rows :

2

UL Flammability Code :

94V-0

Durability :

50 Cycles

Number of Positions Loaded :

All

Feature :

Keying Slot, Mounting Flange

Depth :

8.5mm

Reliability :

COMMERCIAL

Shrouding :

Shrouded - 4 Wall

Insulation Material :

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

Polarization Key :

CTR W/GUIDE SLOTS

Orientation :

Straight

Contact Finish - Mating :

NOT SPECIFIED

Overall Contact Length :

0.650 16.51mm

Mating Contact Pitch :

0.1 inch

Style :

Board to Cable/Wire

DIN Conformance :

yes

Number of Conductors :

ONE

Packaging :

Bulk

Number of Rows :

2

Insulation Height :

0.681 17.30mm

Contact Type :

Male Pin

Contact Length - Mating :

0.228 5.80mm

RoHS Status :

ROHS3 Compliant

Operating Temperature :

-55°C~125°C

Length :

100.88mm

Rated Current (Signal) :

1A

Contact Length - Post :

0.114 2.90mm

Mounting Type :

Through Hole

Reference Standard :

UL

Number of Positions :

64

Filter Feature :

No

Material Flammability Rating :

UL94 V-0

MIL Conformance :

No

Contact Shape :

Square

Connector Type :

Header
