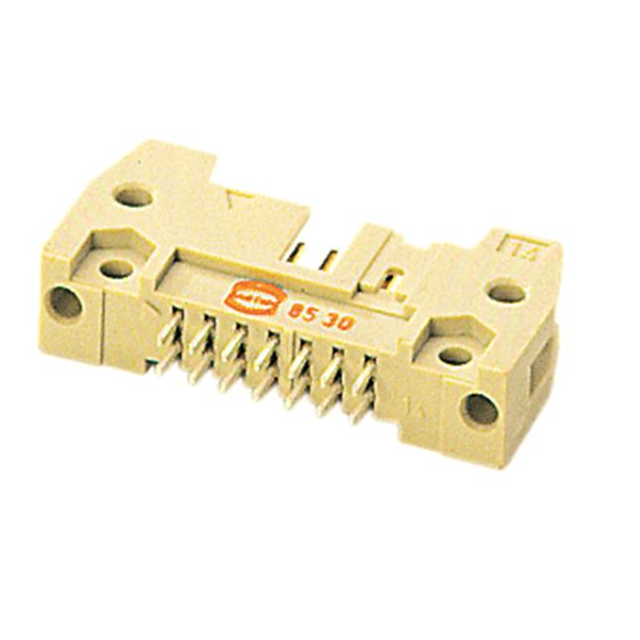

09195646914

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Contact Gender :

Male

Number of Positions :

64

Rated Current (Signal) :

2A

Reference Standard :

UL

Number of Rows :

2

Operating Temperature :

-55°C~125°C

Factory Lead Time :

7 Weeks

REACH SVHC :

No SVHC

Reliability :

COMMERCIAL

PCB Contact Pattern :

RECTANGULAR

Orientation :

Straight

Insulation Resistance :

1000000000Ohm

Additional Feature :

STANDARDS: IEC 60603-13; DIN EN 60603-13

Mounting Type :

Through Hole

Overall Contact Length :

0.650 16.51mm

IEC Conformance :

yes

Polarization Key :

POLARIZED HOUSING

Contact Length - Mating :

0.228 5.80mm

Material Flammability Rating :

UL94 V-0

Contact Type :

Male Pin

Contact Finish - Post :

Tin

Insulation Color :

Beige

Mixed Contacts :

No

Feature :

Keying Slot, Mounting Flange

Length :

100.88mm

RoHS Status :

ROHS3 Compliant

Filter Feature :

No

HTS Code :

8536.69.40.40

Insulation Height :

0.681 17.30mm

Number of Positions Loaded :

All

Number Of PCB Rows :

2

Contact Shape :

Square

DIN Conformance :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

MIL Conformance :

No

Series :

SEK

Pbfree Code :

yes

Pitch - Mating :

0.100 2.54mm

UL Flammability Code :

94V-0

Style :

Board to Cable/Wire

Contact Length - Post :

0.114 2.90mm

Mount :

Through Hole

Option :

GENERAL PURPOSE

Number of Conductors :

ONE

Row Spacing - Mating :

0.100 (2.54mm)

Depth :

8.5mm

ECCN Code :

EAR99

Fastening Type :

Latch Lock/Eject Hooks, Short

Termination :

Solder

Body Breadth :

0.335 inch

Mating Contact Pitch :

0.1 inch

Insulation Material :

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

Connector Type :

Header

Shrouding :

Shrouded - 4 Wall

Contact Finish - Mating :

NOT SPECIFIED

Current Rating :

2A

Contact Material :

COPPER ALLOY

Packaging :

Bulk
