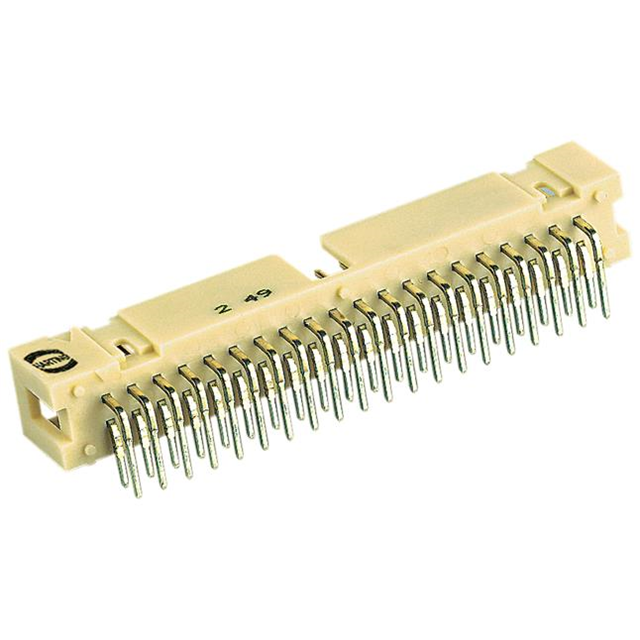

09195646323

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Body Length or Diameter :

3.508 inch

IEC Conformance :

No

Series :

SEK

Contact Length - Post :

0.114 2.90mm

Contact Shape :

Square

Insulation Height :

0.366 9.30mm

Number of Positions Loaded :

All

Contact Type :

Male Pin

Operating Temperature :

-55°C~125°C

Orientation :

RIGHT ANGLE

DIN Conformance :

yes

Length - Termination :

0.114 inch

Mixed Contacts :

No

Mount :

Through Hole

PCB Contact Pattern :

RECTANGULAR

Packaging :

Bulk

Connector Type :

Header

Reliability :

COMMERCIAL

Style :

Board to Cable/Wire

Additional Feature :

STANDARDS: MIL-C-83503; DIN 41651, POLARIZED

Option :

GENERAL PURPOSE

Row Spacing - Mating :

0.100 (2.54mm)

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Conductors :

ONE

Fastening Type :

Latch Holder

RoHS Status :

ROHS3 Compliant

Termination :

Solder

Mating Contact Pitch :

0.1 inch

MIL Conformance :

No

Insulation Material :

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

Filter Feature :

No

Number Of PCB Rows :

2

Shrouding :

Shrouded - 4 Wall

Polarization Key :

CTR W/GUIDE SLOTS

Pitch - Mating :

0.100 2.54mm

Mounting Type :

Through Hole, Right Angle

Feature :

Keying Slot

Insulation Resistance :

1000000000Ohm

Number of Rows :

2

Factory Lead Time :

10 Weeks

Body Depth :

0.48 inch

UL Flammability Code :

94V-0

Material Flammability Rating :

UL94 V-0

Contact Material :

COPPER ALLOY

Insulation Color :

Beige

Contact Finish - Mating :

NOT SPECIFIED

Dielectric Withstanding Voltage :

1000VAC V

Rated Current (Signal) :

1A

Number of Positions :

64

Contact Length - Mating :

0.240 6.10mm

Reference Standard :

UL
