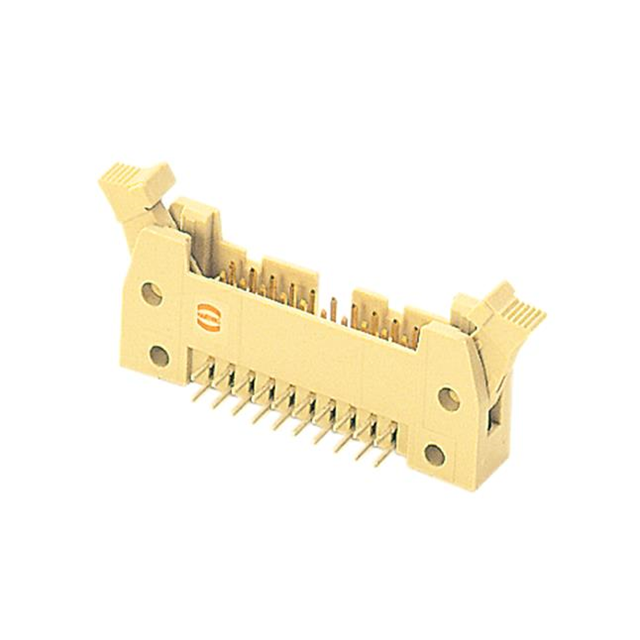

09195607913

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Number of Conductors :

ONE

Number of Rows :

2

Rated Current (Signal) :

1A

Option :

GENERAL PURPOSE

Operating Temperature (Min) :

-55°C

Mounting Type :

BOARD

Termination Type :

Solder

HTS Code :

8536.69.40.40

Contact Resistance :

20mOhm

Operating Temperature (Max) :

125°C

Polarization Key :

POLARIZED HOUSING

DIN Conformance :

yes

Body Length or Diameter :

3.772 inch

Insulation Material :

GLASS FILLED POLYCYCLOHEXYLENE TEREPHTHALLATE

Filter Feature :

No

Body Depth :

0.543 inch

Reference Standard :

UL

IEC Conformance :

yes

ECCN Code :

EAR99

Board Mounting Option :

HOLE .099-.111

Contact Gender :

Male

Body Breadth :

0.335 inch

Number Of PCB Rows :

2

Contact Pattern :

RECTANGULAR

Mounting Style :

RIGHT ANGLE

Body/Shell Style :

Receptacle

Reliability :

COMMERCIAL

Mixed Contacts :

No

Contact Finish - Mating :

AU

UL Flammability Code :

94V-0

Insulator Color :

Beige

Terminal Pitch :

2.54mm

Length - Termination :

0.114 inch

Mating Contact Row Spacing :

0.1 inch

Mounting Option 1 :

LOCKING

Contact Style :

SQ PIN-SKT

Reach Compliance Code :

Compliant

Total Number of Contacts :

60

PCB Contact Pattern :

RECTANGULAR

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13

Factory Lead Time :

7 Weeks

Contact Finish Termination :

TIN OVER NICKEL

JESD-609 Code :

e3

Connector Type :

BOARD EURO CONNECTOR

MIL Conformance :

No

PCB Contact Row Spacing :

2.54 mm

Mating Contact Pitch :

0.1 inch
