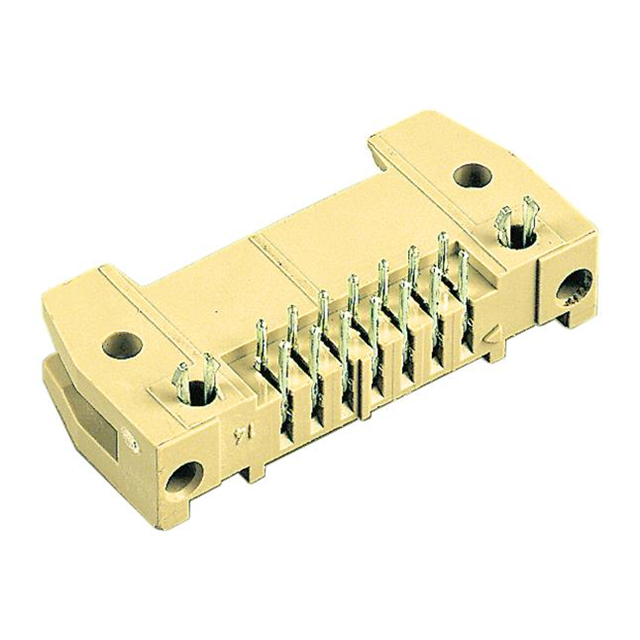

09195507973

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

IEC Conformance :

yes

Total Number of Contacts :

50

HTS Code :

8536.69.40.40

Contact Pattern :

RECTANGULAR

Mounting Type :

BOARD

UL Flammability Code :

94V-0

Reference Standard :

UL

Operating Temperature (Max) :

125°C

Board Mounting Option :

SPLIT BOARD LOCK

Mixed Contacts :

No

Reach Compliance Code :

Compliant

Number of Rows :

2

Termination Type :

Solder

PCB Contact Row Spacing :

2.54 mm

Polarization Key :

POLARIZED HOUSING

PCB Contact Pattern :

RECTANGULAR

Length - Termination :

0.114 inch

Body Depth :

0.681 inch

ECCN Code :

EAR99

Contact Resistance :

20mOhm

Number of Conductors :

ONE

Mating Contact Pitch :

0.1 inch

Rated Current (Signal) :

1A

Mounting Style :

RIGHT ANGLE

Mounting Option 1 :

LOCKING

MIL Conformance :

No

Filter Feature :

No

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13

Option :

GENERAL PURPOSE

Number Of PCB Rows :

2

DIN Conformance :

yes

Body Length or Diameter :

3.272 inch

Contact Gender :

Male

Body Breadth :

0.335 inch

Contact Style :

SQ PIN-SKT

Reliability :

COMMERCIAL

Mating Contact Row Spacing :

0.1 inch

Insulation Material :

POLYBUTYLENE TEREPHTHALATE

Connector Type :

BOARD EURO CONNECTOR

Operating Temperature (Min) :

-55°C

Terminal Pitch :

2.54mm
