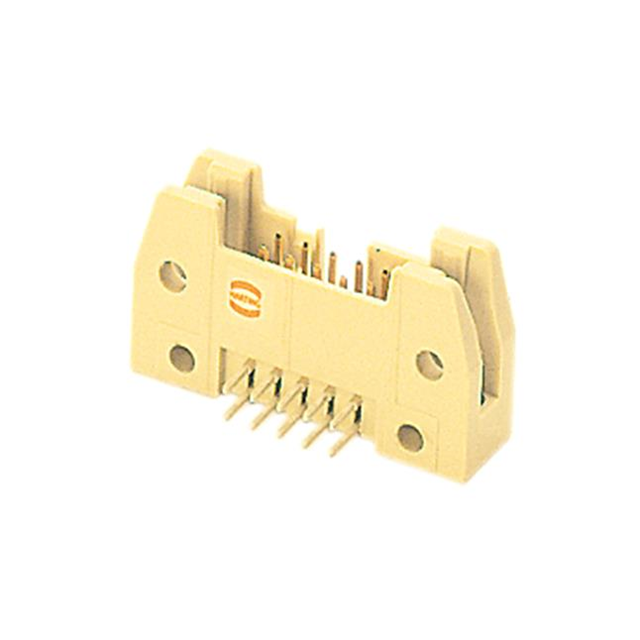

09195507923

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Insulation Material :

GLASS FILLED POLYCYCLOHEXYLENE TEREPHTHALLATE

Mounting Type :

BOARD

Dielectric Withstanding Voltage :

1000VAC V

Mounting Style :

RIGHT ANGLE

Contact Style :

SQ PIN-SKT

Filter Feature :

No

Reliability :

COMMERCIAL

Contact Gender :

Male

Termination Type :

Solder

IEC Conformance :

yes

Insulator Color :

Beige

Polarization Key :

CTR W/GUIDE SLOTS

Connector Type :

BOARD EURO CONNECTOR

Number of Rows :

2

ECCN Code :

EAR99

Contact Resistance :

20mOhm

Reference Standard :

UL

Mating Contact Pitch :

0.1 inch

Contact Finish - Mating :

AU

Operating Temperature (Min) :

-55°C

Contact Finish Termination :

TIN OVER NICKEL

Mating Contact Row Spacing :

0.1 inch

JESD-609 Code :

e3

PCB Contact Pattern :

RECTANGULAR

Body Length or Diameter :

3.26 inch

Length - Termination :

0.114 inch

Total Number of Contacts :

50

UL Flammability Code :

94V-0

Factory Lead Time :

7 Weeks

Number of Conductors :

ONE

Contact Pattern :

RECTANGULAR

Insulation Resistance :

1000000000Ohm

Body Depth :

0.681 inch

MIL Conformance :

No

HTS Code :

8536.69.40.40

Board Mounting Option :

HOLE .099-.111

PCB Contact Row Spacing :

2.54 mm

Option :

GENERAL PURPOSE

Operating Temperature (Max) :

125°C

Body Breadth :

0.331 inch

DIN Conformance :

yes

Rated Current (Signal) :

1A

Reach Compliance Code :

Compliant

Number Of PCB Rows :

2

Body/Shell Style :

Receptacle

Additional Feature :

STANDARD: IEC 60326-3

Durability :

50 Cycles

Terminal Pitch :

2.54mm

Mixed Contacts :

No
